Allen & Heath

Allen & Heath mixing consoles are known for their intuitive design, and excellent sound quality at a competitive price point for live and installed sound applications.

dLive Control Surfaces

Allen & Heath dLive consoles are a popular choice for live sound professionals, combining flexibility, ease of use, and excellent audio quality at a competitive price point. Designed to meet the demands of touring, events, and installations, dLive systems are known for their intuitive workflow and reliable performance in a wide range of environments. 22live offers the full range of dLive consoles and components, supporting customers with expert advice and professional-grade solutions.

S Class Surfaces

Allen & Heath’s dLive S Class control surfaces are built for demanding live sound environments, offering a premium mixing experience with flexible workflows, robust construction, and intuitive operation. Designed for use with dLive MixRacks, the S Class surfaces provide seamless control of complex shows, with fast access to channels, scenes, FX, and routing. Their modular design, large touchscreen interfaces, and extensive I/O options make them ideal for touring, theatre, and installation applications.

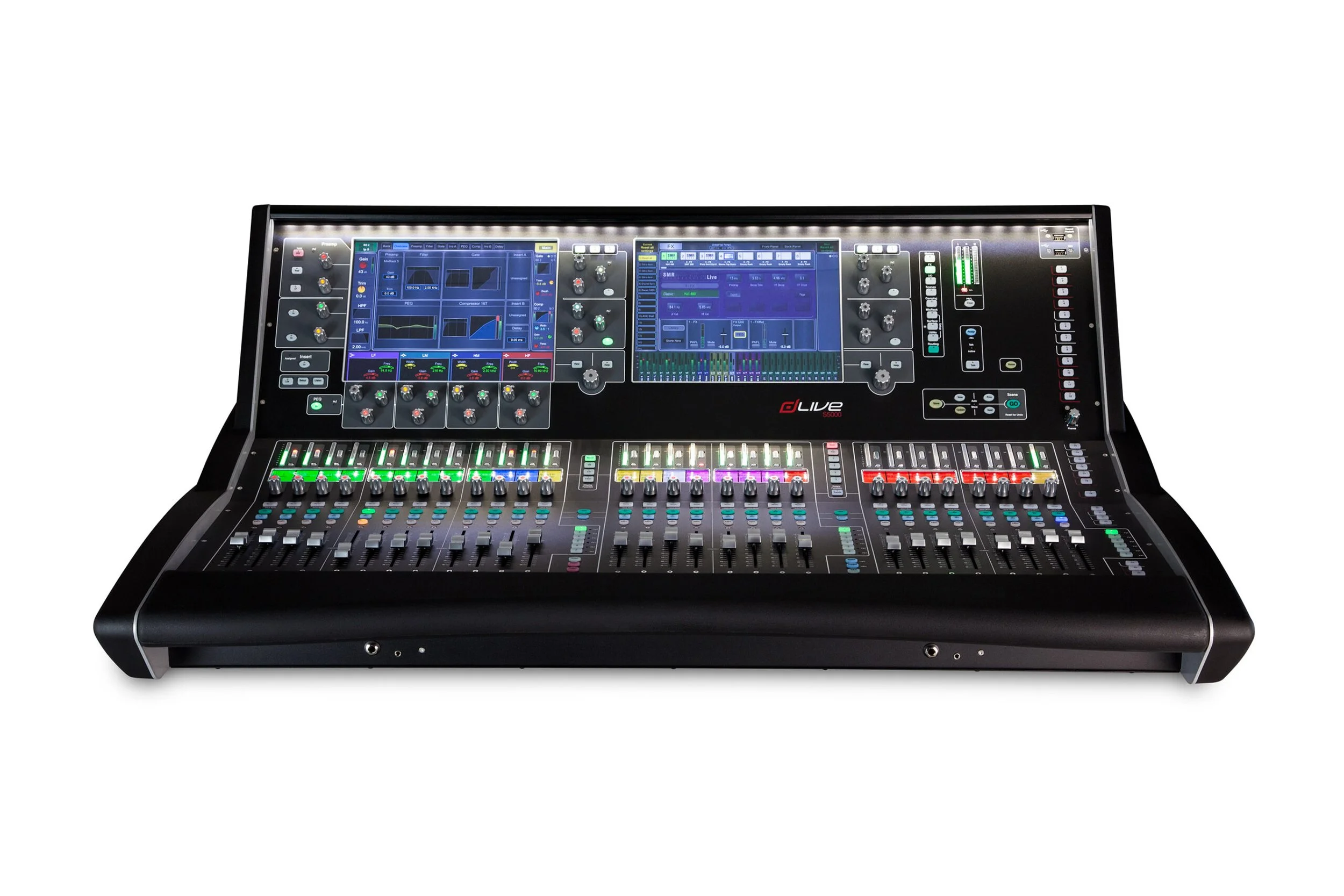

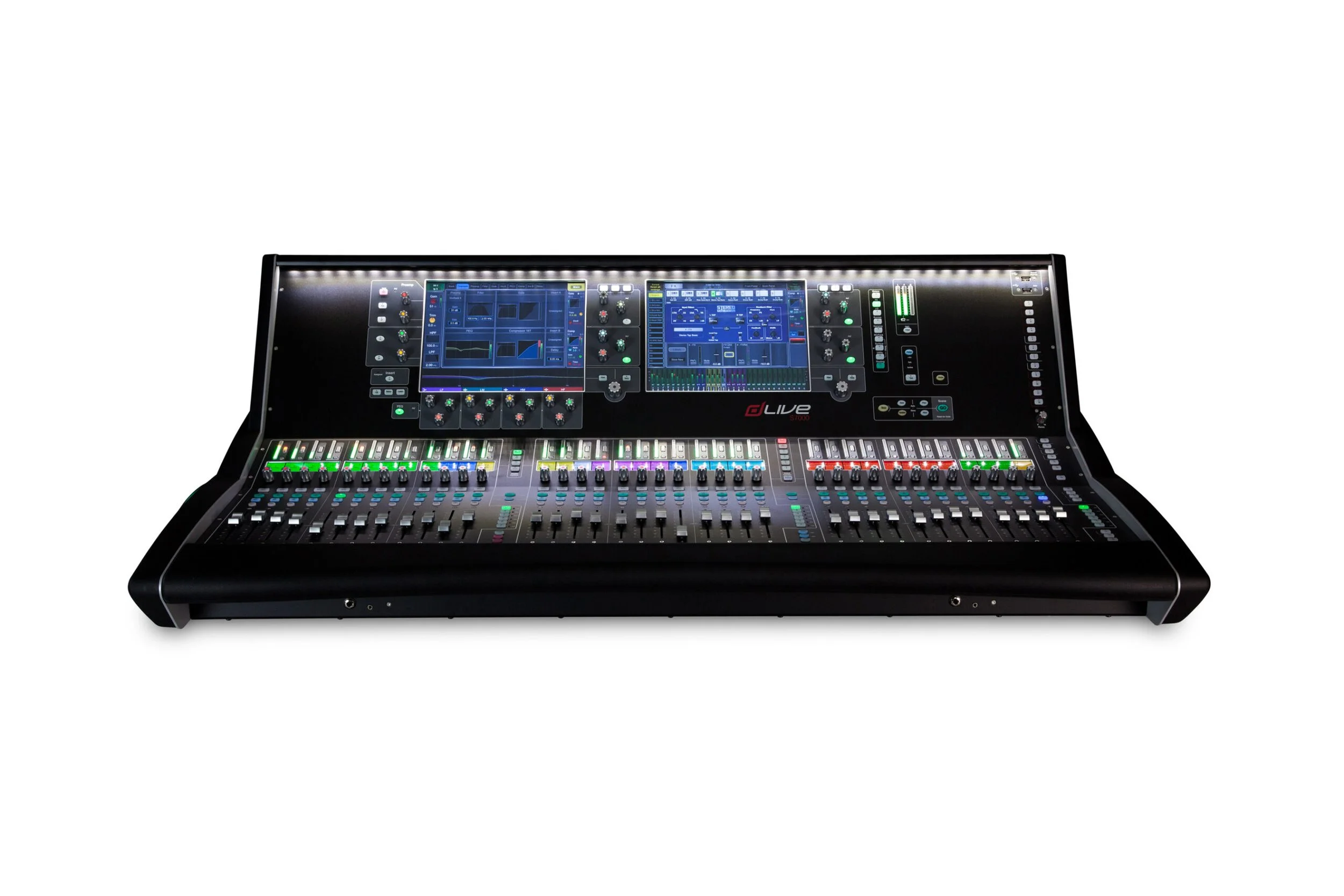

Models: S5000, S7000, S3000
Key Features:

  • Works with all dLive MixRacks over GigaACE protocol

  • Dual 12" or 15" capacitive touchscreens with gesture control

  • 20–36 faders (depending on model) over 6 layers

  • Assignable SoftKeys, rotary controls, and user-configurable layouts

  • Integrated audio I/O (XLR mic/line inputs, line outs, AES I/O)

  • Dual redundant power supplies (S5000/S7000)

  • Built-in audio networking options: Dante, Waves, MADI, etc. (via I/O cards)

  • Scene management with extensive automation features

  • Metal chassis with touring-grade construction

  • Supports up to 128 input channels, 64 mix busses

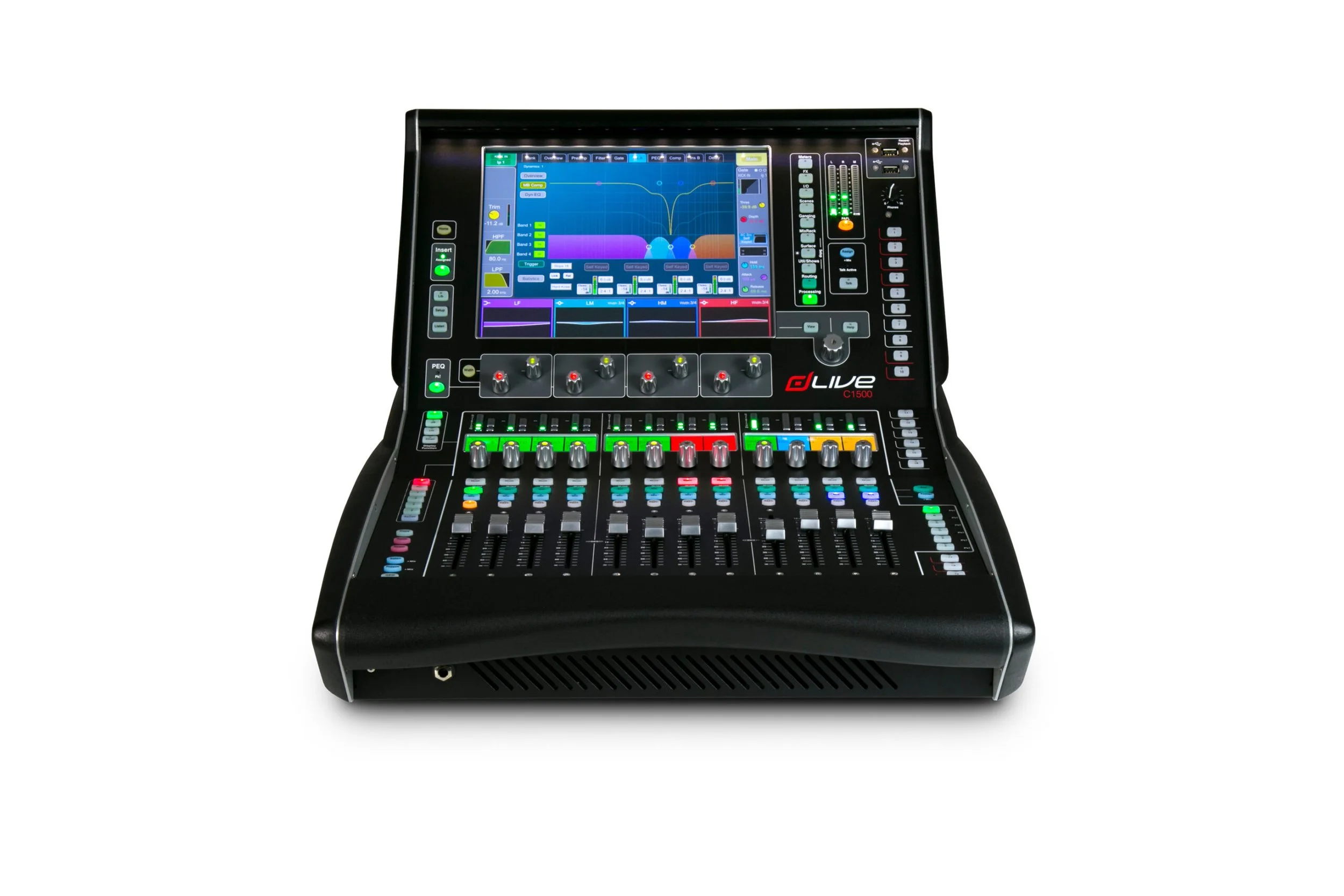

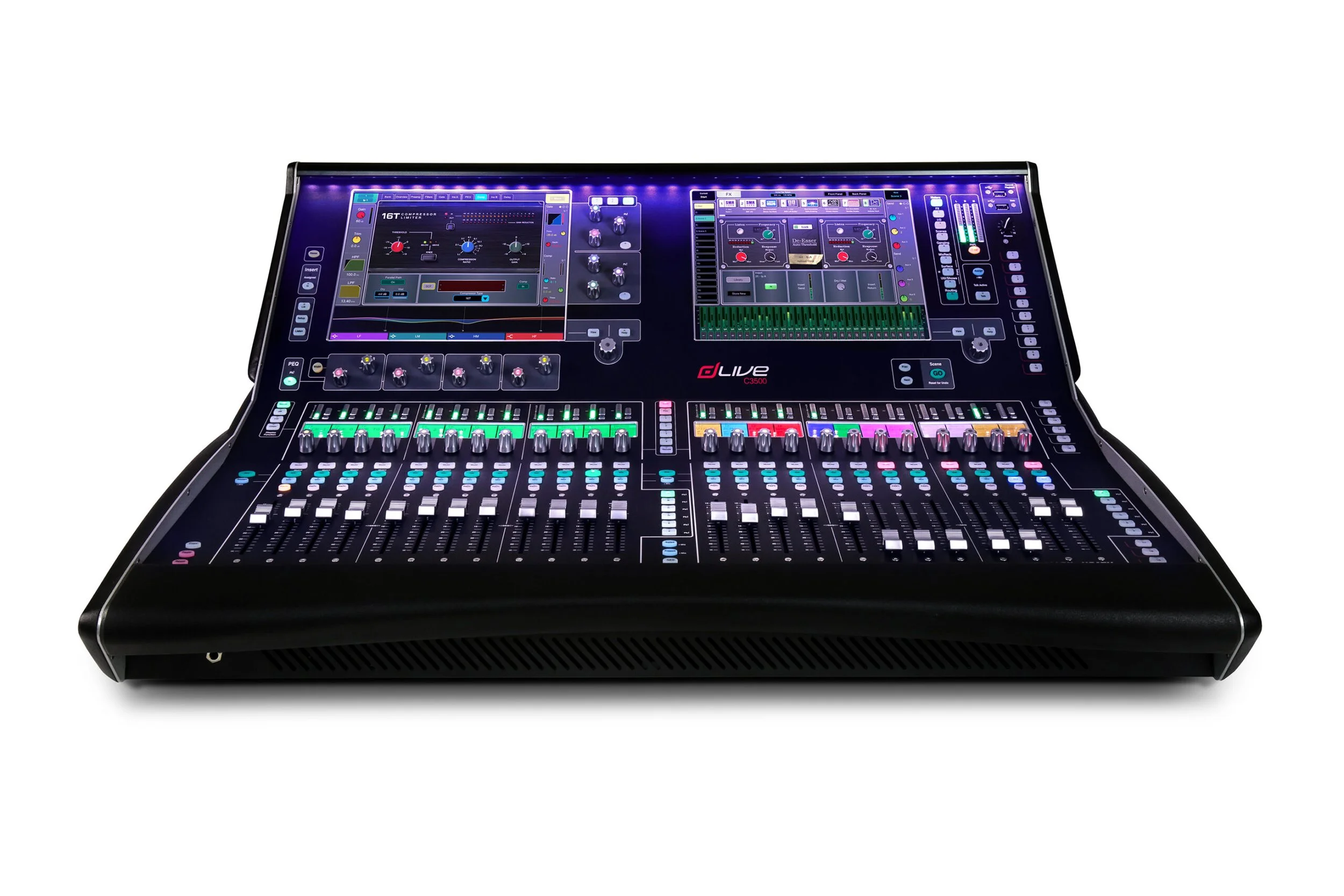

C Class Surfaces


Models: CTi1500, C1500, C2500 & C3500.

The Allen & Heath dLive C Class control surfaces deliver the power and flexibility of the dLive mixing platform in a compact, cost-effective format—ideal for corporate AV, houses of worship, regional touring, and installation projects. Built to work seamlessly with any dLive MixRack over the GigaACE protocol, C Class surfaces provide advanced control and workflow customization in a streamlined footprint.

Key Features:

  • Display & Control: Single or dual capacitive touchscreens (12") with gesture support (model-dependent)

  • Fader Configuration: 12–24 motorized faders over 6 layers

  • Custom Workflow: Assignable SoftKeys, user-assignable rotary controls, and flexible layout options

  • I/O Integration: Built-in I/O including XLR mic/line inputs, line outs, and AES digital I/O

  • Networking Options: Support for Dante, Waves, MADI, and other protocols via optional I/O cards

  • Scene Automation: Comprehensive scene and automation tools for efficient show management

  • Compact Design: Streamlined chassis for portability without sacrificing control

  • Channel & Bus Capacity: Supports up to 128 input channels and 64 mix busses when connected to a dLive MixRack

The dLive C Class offers scalable, professional-grade mixing capabilities in a space-efficient form factor—perfect for applications that demand high performance with a smaller footprint.

The CTi1500 stands out as the most compact and lightweight model in the series, weighing just 11.5 kg (25.4 lbs) thanks to its titanium-infused chassis and laminated carbon fiber panels. Designed specifically for flight-based work, it meets airline checked baggage limits and is ideal for solo engineers or tight transport situations, without sacrificing functionality or durability.

dLive MixRacks

All dLive MixRacks feature the same mix engine – 128 input channels and 64 mix outputs with a configurable 64-bus architecture, class-leading 0.7ms latency and phase-aligned signal paths for maximum flexibility in all applications – but differ in the number of onboard analogue I/O, redundancy options and digital I/O card slots.

S Class MixRacks

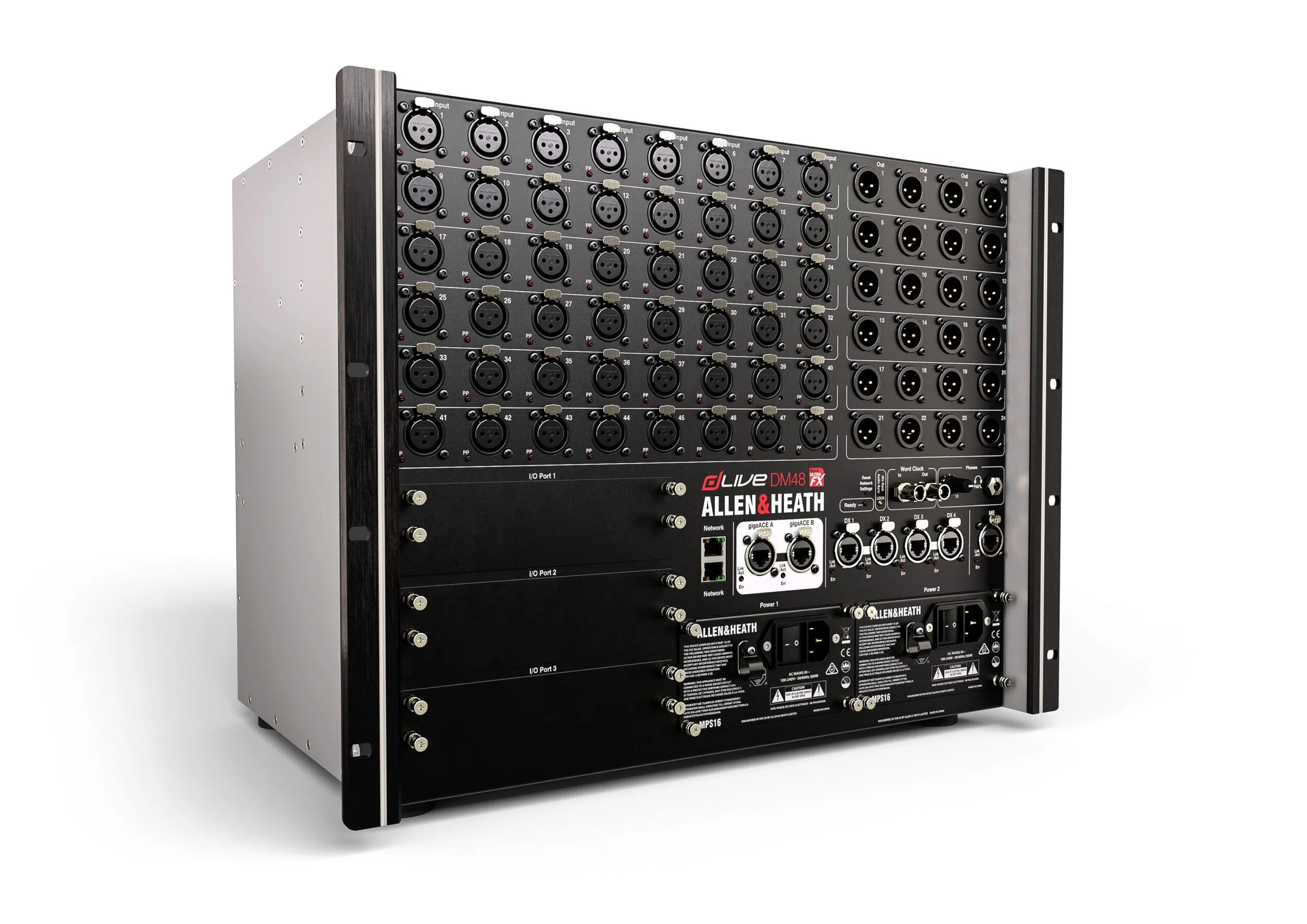

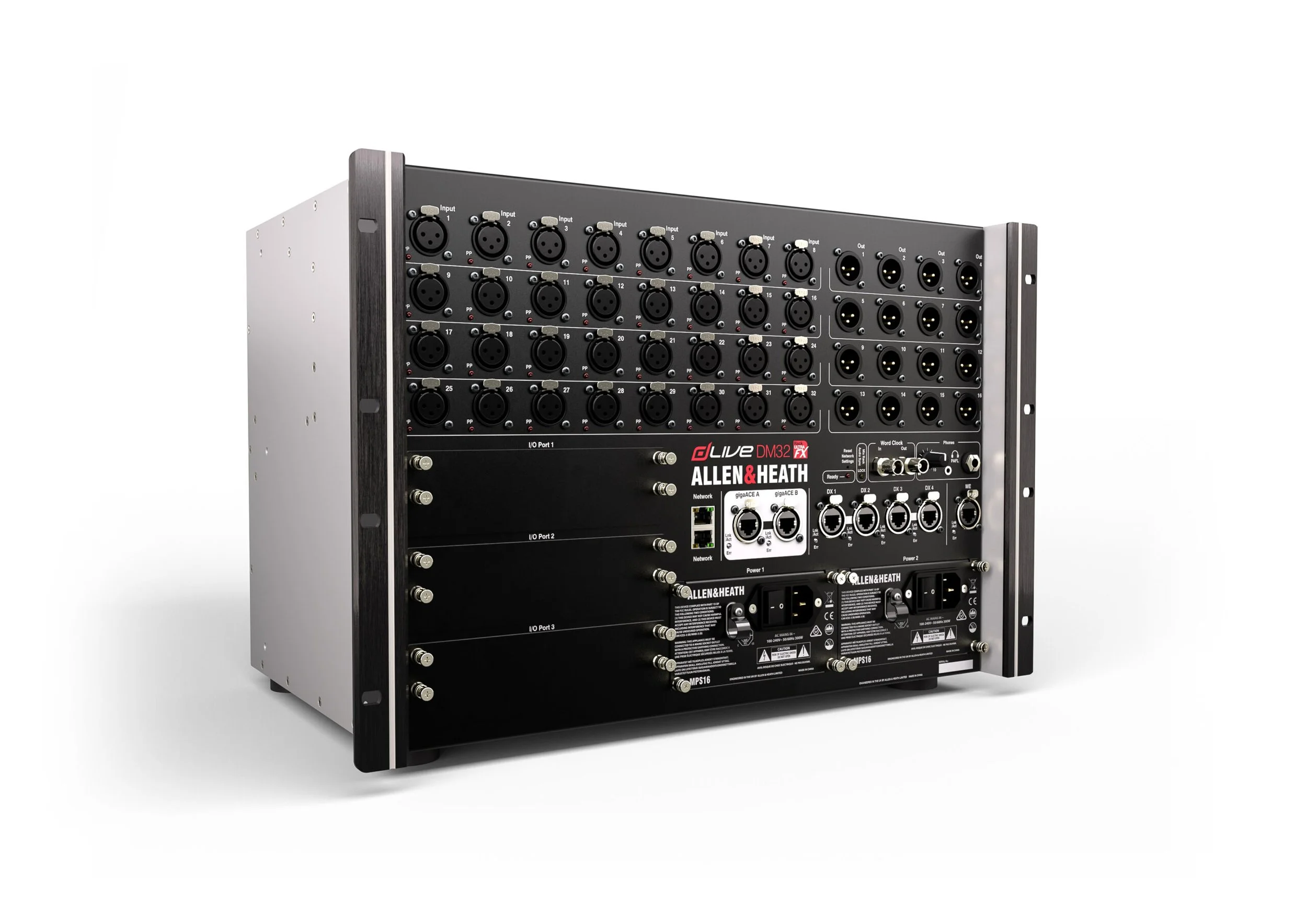

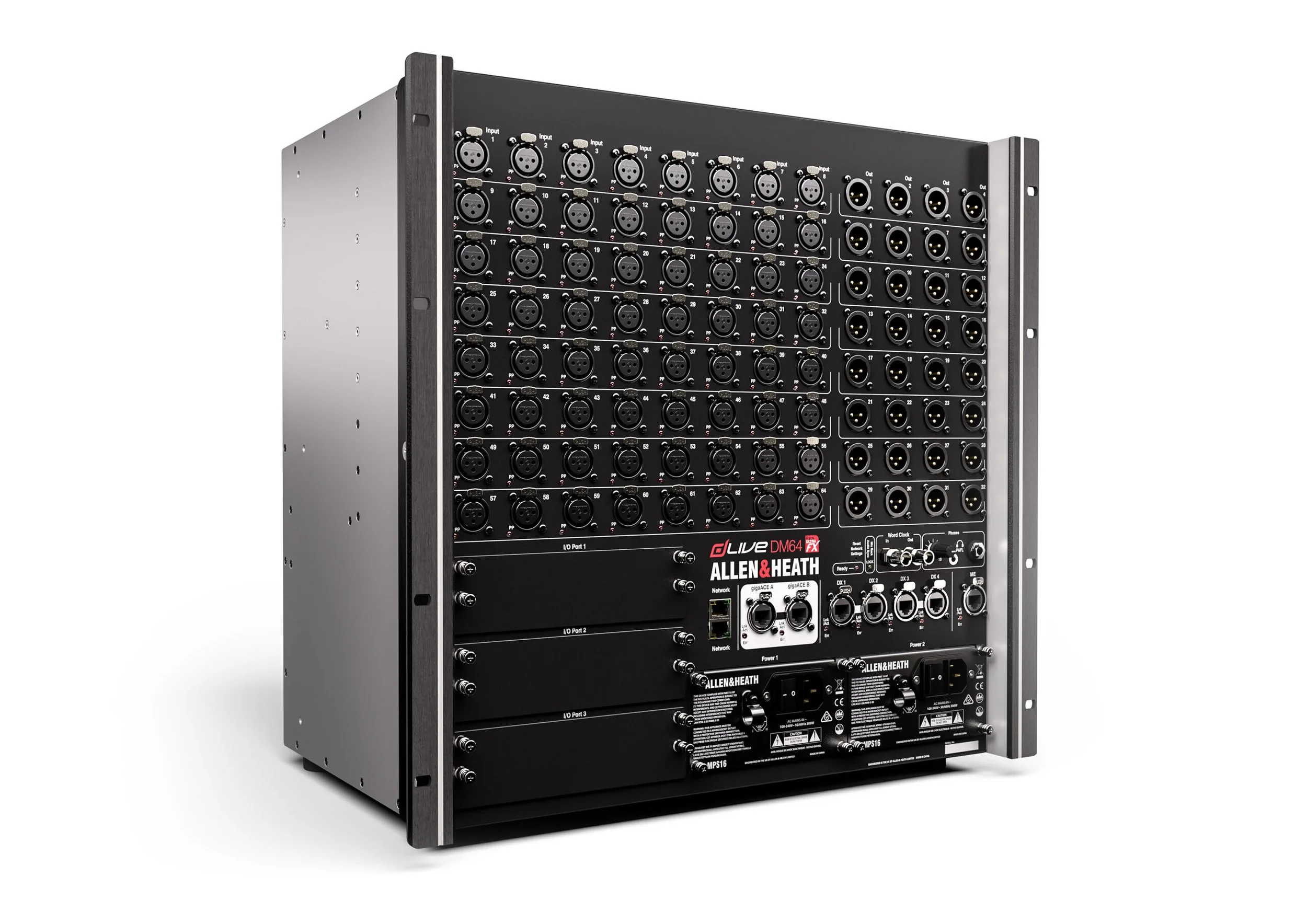

Models: DM32, DM48, DM64

Built around Allen & Heath’s powerful XCVI processing core, the dLive S Class MixRacks deliver high-end audio performance and scalability for the most demanding live sound applications. Whether in touring, broadcast, theatre, or installation, S Class MixRacks provide up to 128 input channels and 64 mix busses, with ultra-low latency and precise 96kHz audio resolution. Paired with any dLive Surface or controlled via software and remote apps, the MixRacks act as the heart of the system, offering robust connectivity, redundancy, and customization via modular I/O cards and network options.

  • Analog Inputs (XLR):

    • DM32: 32 inputs

    • DM48: 48 inputs

    • DM64: 64 inputs

  • Analog Outputs (XLR):

    • DM32: 16 outputs

    • DM48: 24 outputs

    • DM64: 32 outputs

  • Rack Size:

    • DM32: 4U

    • DM48: 5U

    • DM64: 5U

Common Features (All Models):

  • 1 I/O Port for audio networking cards (Dante, Waves, MADI, etc.)

  • 1 SLink port for remote audio expanders

  • 1 GigaACE port to connect to dLive Surfaces

  • Redundant hot-swappable power supply support

  • XCVI processing core: 96kHz audio, ultra-low latency (<0.7ms)

  • Supports up to 128 input channels and 64 mix busses

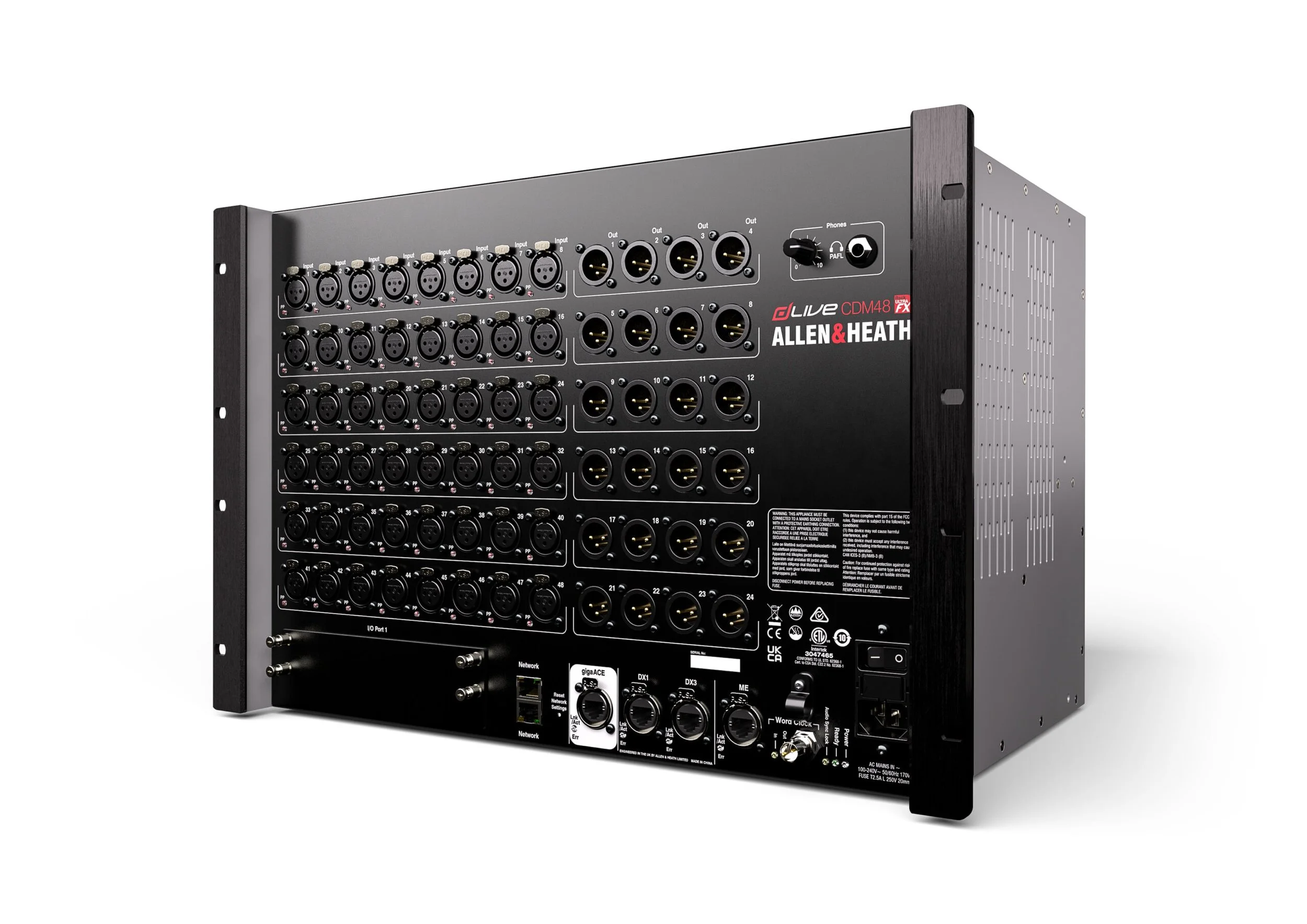

C Class MixRacks

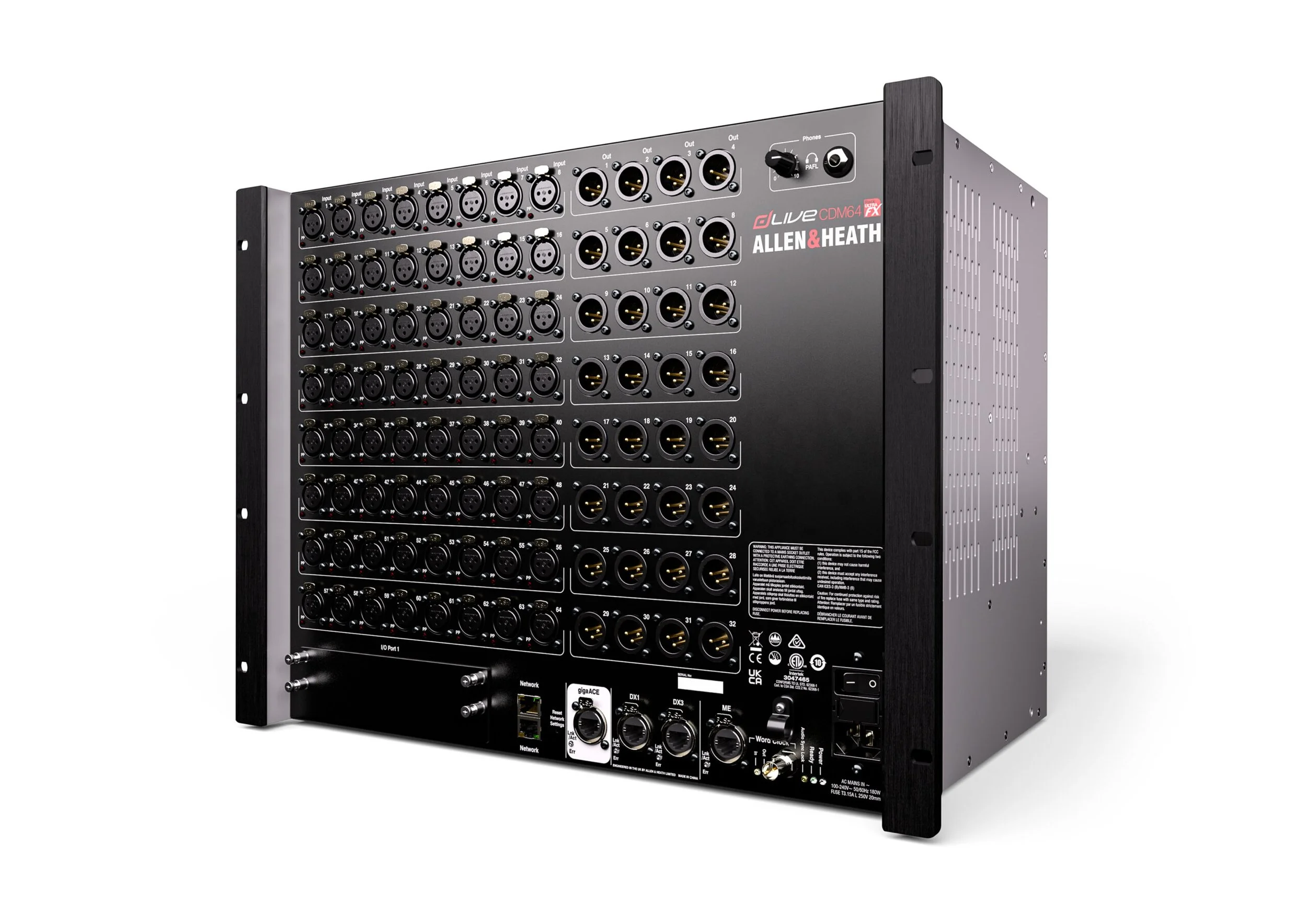

Models: CDM32, CDM48, CDM64

The Allen & Heath dLive C Class MixRacks offer the same powerful XCVI processing engine as the flagship S Class, but in a more compact, cost-effective form factor. Designed for smaller or budget-conscious applications, C Class MixRacks are ideal for corporate AV, houses of worship, regional touring, and installations. They support up to 128 input channels and 64 mix busses with 96kHz audio, ultra-low latency, and full compatibility with all dLive Surfaces, software, and remote control options.

Analog Inputs (XLR):

  • CDM32: 32 inputs

  • CDM48: 48 inputs

  • CDM64: 64 inputs

Analog Outputs (XLR):

  • CDM32: 16 outputs

  • CDM48: 24 outputs

  • CDM64: 32 outputs

Rack Size:

  • CDM32: 4U

  • CDM48: 5U

  • CDM64: 5U

Common Features (All Models):

  • 1 I/O Port for audio networking cards (Dante, Waves, MADI, etc.)

  • 1 SLink port for remote audio expanders (DX or GX series)

  • 1 GigaACE port to connect to dLive Surfaces

  • XCVI processing core: 96kHz audio, <0.7ms latency

  • Supports up to 128 input channels and 64 mix busses

  • Compatible with all dLive C and S Class Surfaces

  • Remote control via Director software, MixPad app, or IP controllers

Note:
Unlike the S Class MixRacks, C Class MixRacks do not support redundant power supplies as standard, making them more suited to applications where cost or size is a priority over redundancy.

Avantis

The Allen & Heath Avantis is a super-flexible digital mixer with dual touchscreens and 24 faders, perfect for mid-size gigs, corporate events, and installs. It delivers great sound with low latency and packs plenty of power and connectivity in a tough, road-ready design.

Avantis Series

Allen & Heath’s Avantis Series digital mixers bring dLive-class processing and flexibility to a standalone, mid-format console, making them ideal for touring, corporate AV, houses of worship, and installation environments. Powered by the 96kHz XCVI FPGA core, Avantis delivers pristine audio quality, ultra-low latency, and a responsive workflow centered around its dual touchscreens and Continuity UI. With scalable I/O, DEEP processing, and optional audio networking, Avantis provides a powerful, future-ready mixing platform in a sleek, road-ready chassis.

Models: Avantis & Avantis Solo
Key Features:

  • Powered by 96kHz XCVI core with 0.7ms latency and phase-coherent audio

  • Dual 15.6" capacitive touchscreens with Continuity UI and gesture support

  • 24 faders over 6 layers with user-assignable SoftKeys and rotaries

  • 64 input channels / 42 configurable buses

  • Support for DEEP processing, AMM, and dPack plugin options

  • Compatible with GX, DX, dLive, and third-party I/O expanders

  • I/O card slot for Dante, Waves, MADI, gigaACE, and more

  • Scene and show management with comprehensive automation tools

  • Rugged, all-metal chassis designed for touring and fixed install

  • Redundant power supply support via external PSU unit

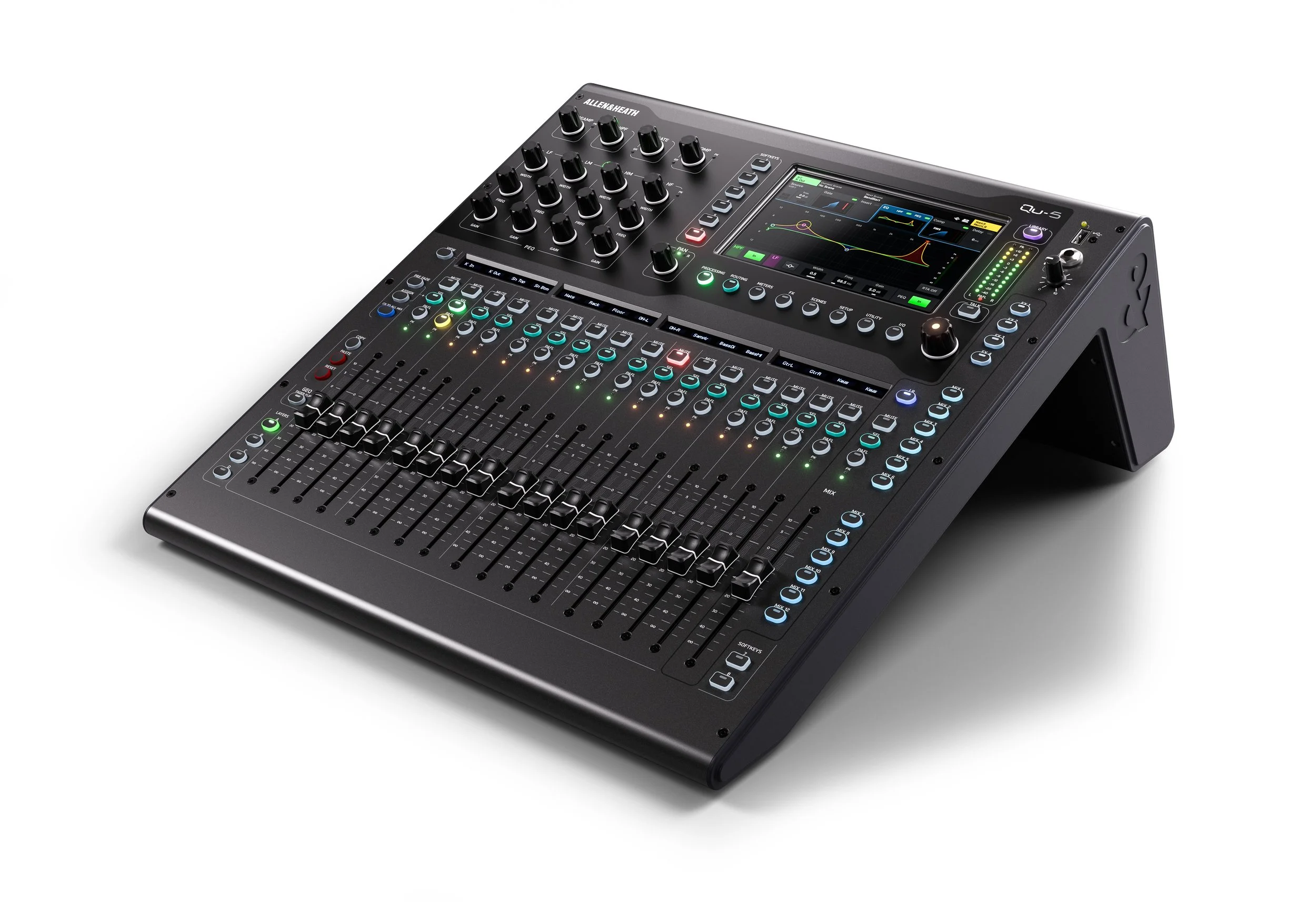

SQ & Qu

Explore Allen & Heath’s versatile SQ and QU digital mixing consoles—designed for everything from small venues to mid-sized tours. Paired with a range of compatible stage boxes, these systems offer powerful, flexible audio solutions tailored to your live sound and installation needs. Supplied and supported by 22live.

SQ & Qu Consoles

Allen & Heath SQ & QU Digital Consoles

Allen & Heath’s SQ and QU digital consoles deliver versatile, professional-grade mixing solutions for a wide range of live sound and installation applications. The QU Series features an intuitive interface with built-in USB multitrack recording, perfect for smaller venues, houses of worship, and educational settings. The SQ Series steps up the game with 96kHz XCVI FPGA processing, DEEP plug-in support, and expanded channel capacity, making it ideal for mid-sized touring, corporate AV, and live sound production.

Models:

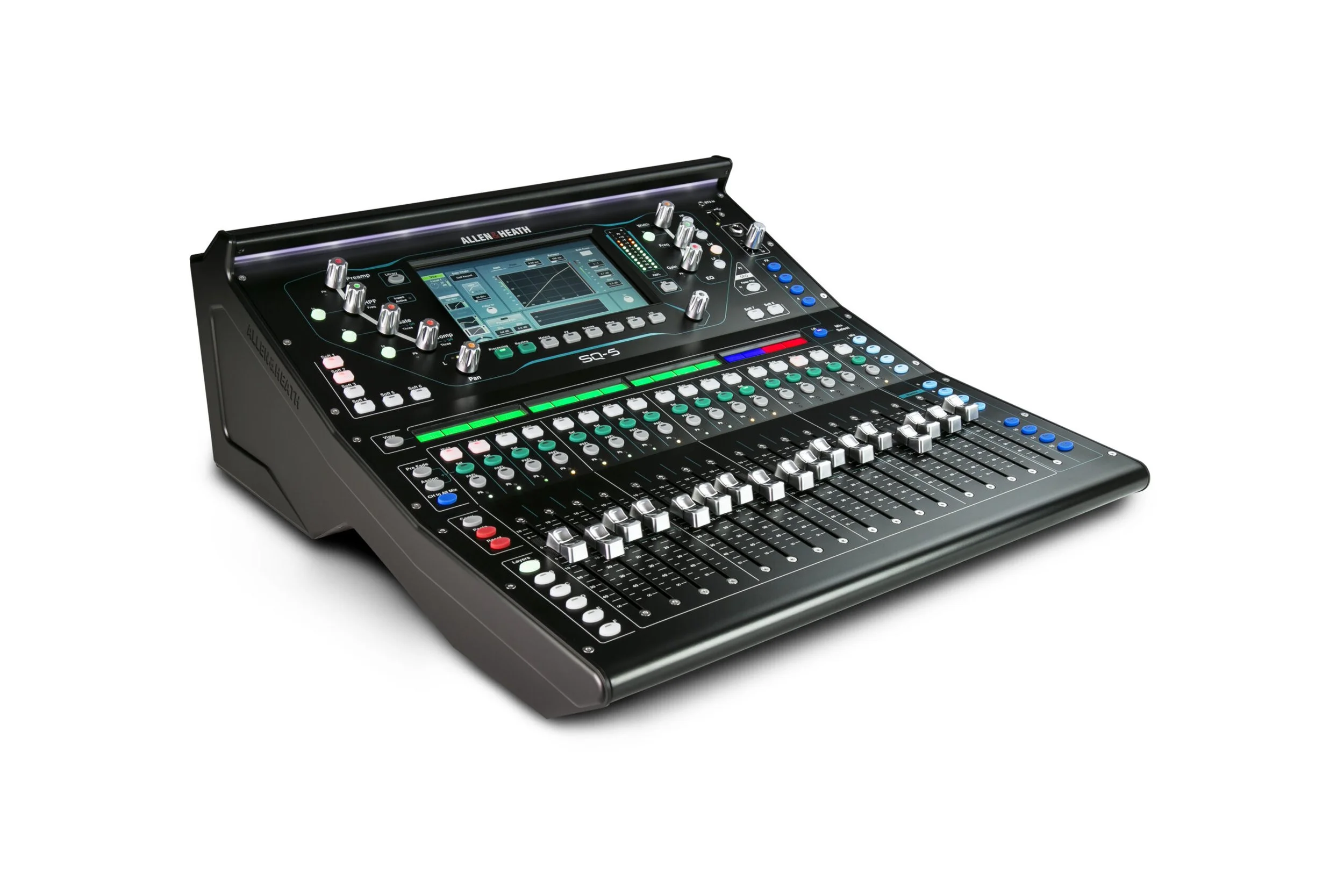

  • SQ-5, SQ-6, SQ-7

  • QU-16, QU-24, QU-SB

Compatible Stage Boxes:

  • ME-1 Personal Monitor Mixer

  • dSnake Series: DX168, DX164-W, DX32, DX32-AR

  • DX Series: DX168, DX164-W, DX32, DX32-AR

  • ME-500 Monitor Engine

Key Features:

  • QU Series: Easy-to-use digital mixing with USB multitrack recording

  • SQ Series: 96kHz, ultra-low latency, DEEP plug-in support

  • Flexible routing and scene management

  • Wide I/O compatibility with dSnake and DX stage boxes

  • Expandable via Waves SoundGrid and Dante options (SQ only)

  • Ideal for live sound, corporate events, houses of worship, and installations

22live can provide expert guidance and support for the entire SQ and QU product range, including all compatible stage boxes, ensuring you get the best solution for your audio needs.
