d&b audiotechnik
d&b audiotechnik delivers industry-leading professional audio solutions known for unmatched clarity, power, and reliability. As the preferred choice for artists worldwide, d&b offers scalable line arrays, point source speakers, cutting-edge amplifiers, and immersive Soundscape technology that elevate live events, installations, and tours with crystal-clear sound and precise control.
At 22live, we maintain close partnerships with d&b as a manufacturer, enabling us to tailor-make audio packages perfectly suited to your unique needs.
-
SL-Series (GSL,KSL,XSL)
A-Series
V-Series
E-Series
xS-Series
SL-SUB
V-SUB
D-Series Amplifiers
SL Series
Featuring scalable resolution for adaptable coverage, consistency and control for efficient deployment at live events.
KSL
The d&b KSL is a compact, full-range line array loudspeaker in the SL-Series, engineered for high-output applications where space and weight are considerations. Like the GSL, it features a 3-way active design with two 10" forward-facing LF drivers and two side-mounted 8" LF drivers to maintain full-bandwidth cardioid directivity. It also includes a horn-loaded 8" MF driver and dual 1.4" HF compression drivers. With a frequency response of 54 Hz – 18 kHz and a maximum SPL of 143 dB, the KSL offers powerful, controlled sound with consistent directivity — ideal for arenas, amphitheaters, and medium to large-scale touring
XSL

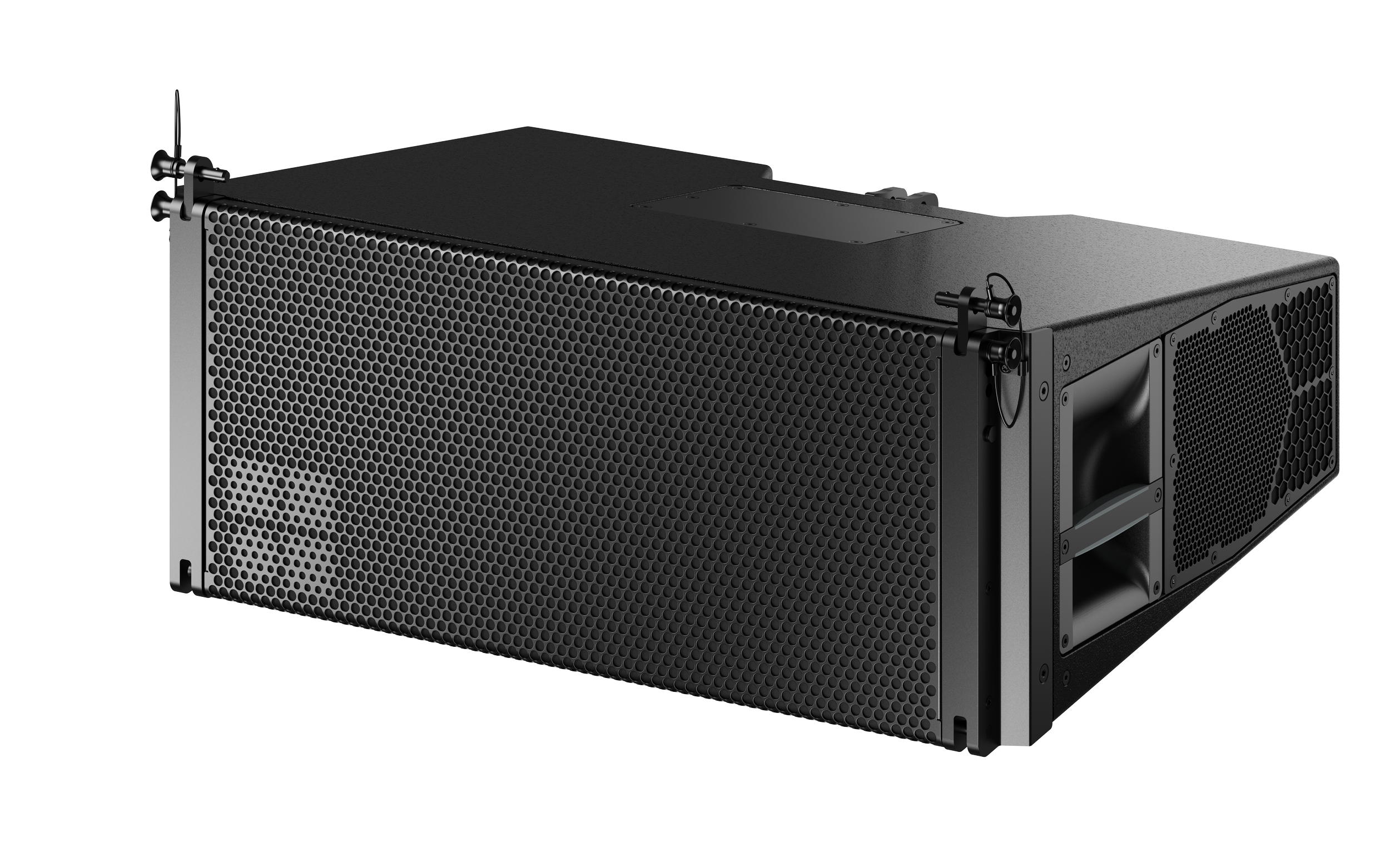

The d&b XSL is the most compact member of the SL-Series, delivering full-range, broadband cardioid performance in a lightweight format ideal for theatres, clubs, and smaller venues. It features a 3-way active design with two 8" front-firing LF drivers and two side-mounted 6.5" LF drivers, maintaining the SL-Series' signature low-frequency directivity. With a horn-loaded 6.5" MF driver and dual 1" HF compression drivers, it achieves a frequency response of 60 Hz – 18 kHz and a maximum SPL of 139 dB. XSL is also perfectly voiced to integrate seamlessly with KSL and GSL systems, making it an ideal solution for fills, delays, or smaller extensions of larger SL-Series deployments.
SL Sub
The d&b SL-SUB is a high-performance cardioid subwoofer designed to complement the SL-Series line arrays — GSL, KSL, and XSL — with powerful, controlled low-frequency extension. It features three 21" drivers: two front-facing and one rear-facing, enabling true cardioid dispersion to reduce unwanted energy behind the system. With a frequency response of 33 Hz – 83 Hz and a maximum SPL of 143 dB, the SL-SUB delivers deep, impactful bass with exceptional rear rejection. Its acoustic and aesthetic design ensures seamless integration with the full SL-Series, whether flown or ground-stacked.
CL Series
The d&b CL-Series delivers compact, full-range sound with precise coverage and clarity, ideal for smaller venues and permanent installations. Sleek, installation-friendly, and built to d&b’s professional standards.
CCL8 & CCL12

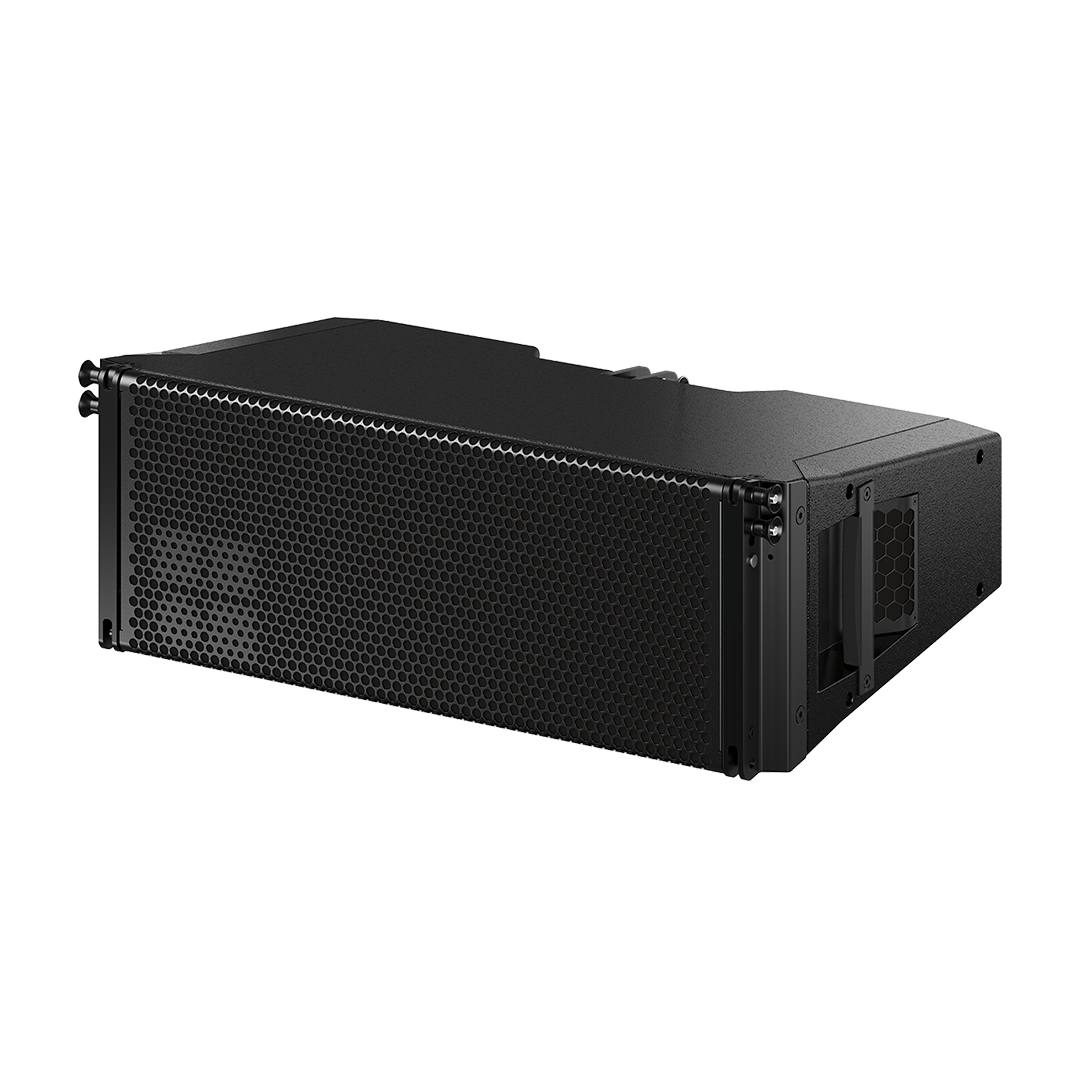

The d&b CCL8 and CCL12 bring advanced cardioid performance to a compact, lightweight format. Featuring identical enclosures with 80° and 120° horizontal dispersion options, they deliver outstanding clarity, control, and full-bandwidth consistency. Each cabinet combines twin 7" and 5" LF drivers with dual 1.75" compression drivers, achieving a maximum SPL of over 136 dB. Designed for flexibility across touring and installation, the CCL8 and CCL12 provide powerful, predictable performance — whether used as main arrays, side fills, or integrated into larger d&b systems.
CCL-SUB

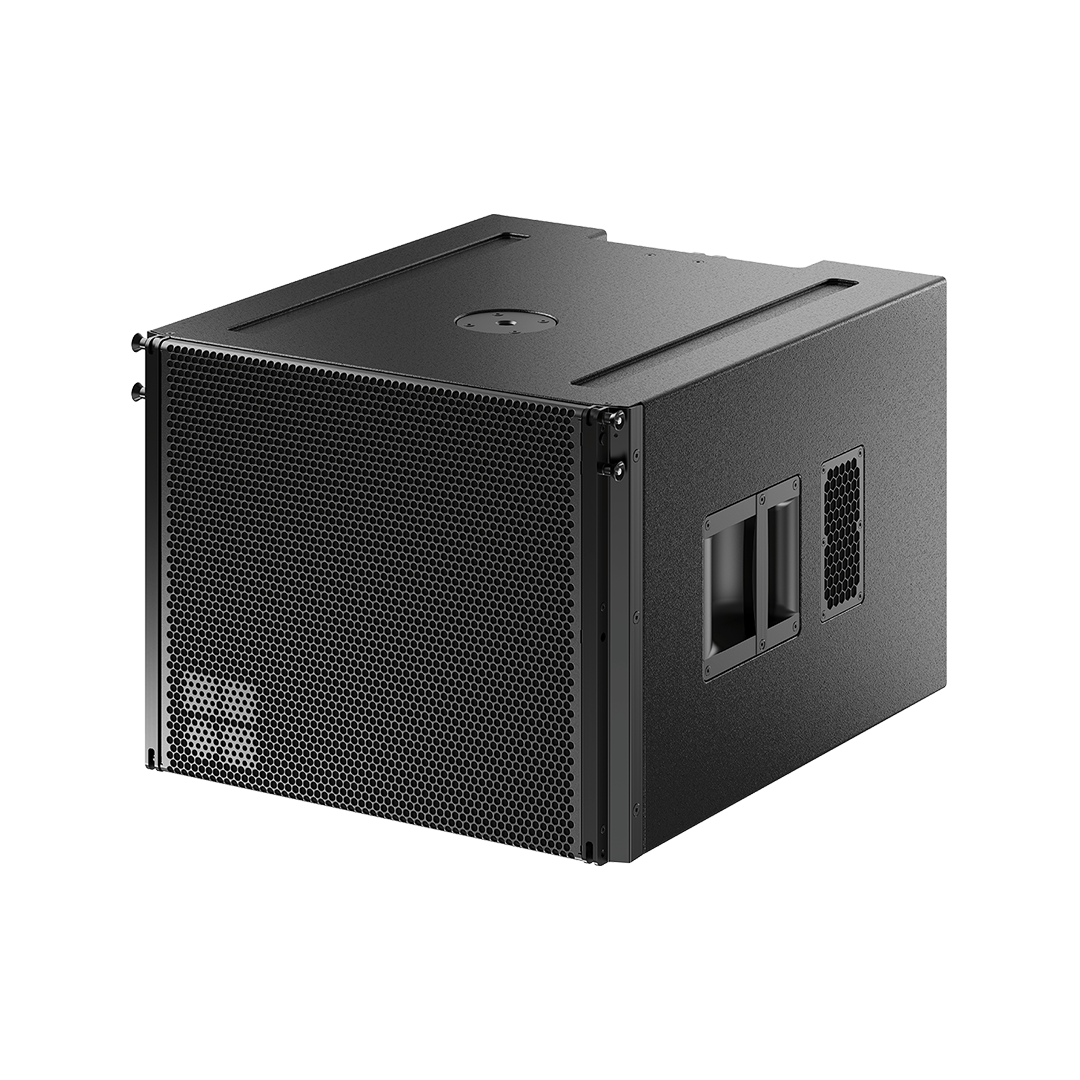

The d&b CCL-SUB delivers powerful, precise low-frequency performance in a compact, cardioid design. Featuring a front-firing 15" driver paired with a rear 10" bandpass driver, it provides exceptional control and up to 132 dB SPL across the 39–150 Hz range. Engineered for seamless integration with the CCL line array, the CCL-SUB ensures consistent low-end coverage and reduced energy behind the system. Its lightweight, flyable enclosure and weather-resistant construction make it a versatile choice for both touring and installation environments.
Point Source - Mobile
d&b point source speakers deliver clear, powerful, and consistent sound for a wide range of applications. Their precise coverage and flexible design make them ideal for venues where a line array isn’t needed.

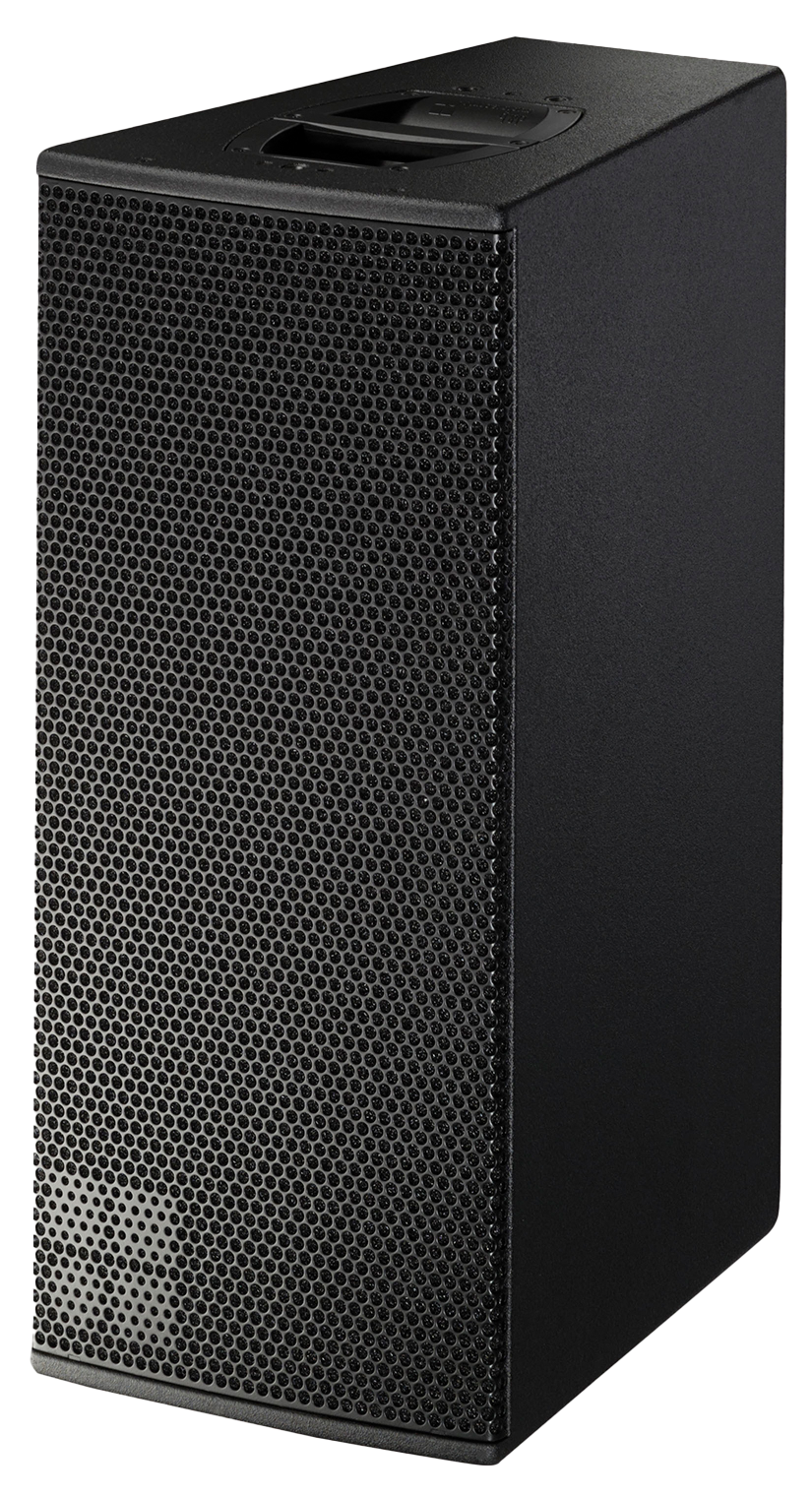

VP Series
The d&b V7P and V10P are compact, high-performance point-source speakers delivering the signature clarity and power of the V-Series. The V7P offers focused coverage, while the V10P provides a wider pattern for broader audience reach. Both feature advanced three-way designs with powerful LF, mid, and HF drivers, producing clear, dynamic sound suitable for touring, installations, or as standalone mains.
YP Series

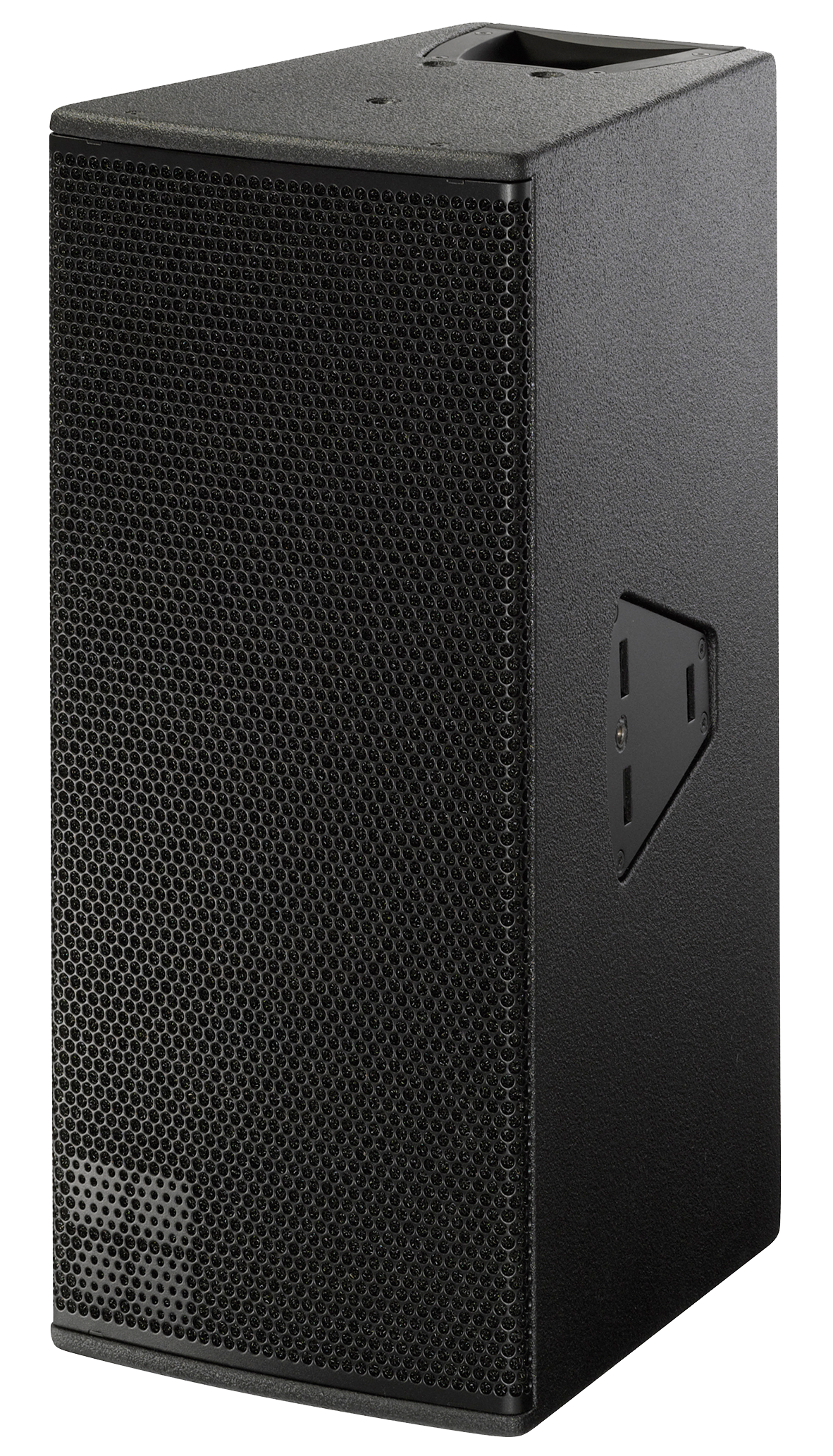

The d&b YP-Series delivers professional, full-range sound in a compact, versatile point-source design. With wide, consistent coverage and clear, natural audio across LF, mid, and HF ranges, the YP speakers are ideal for small to medium venues, mobile rigs, and distributed sound applications, providing reliable performance in both touring and installation setups.

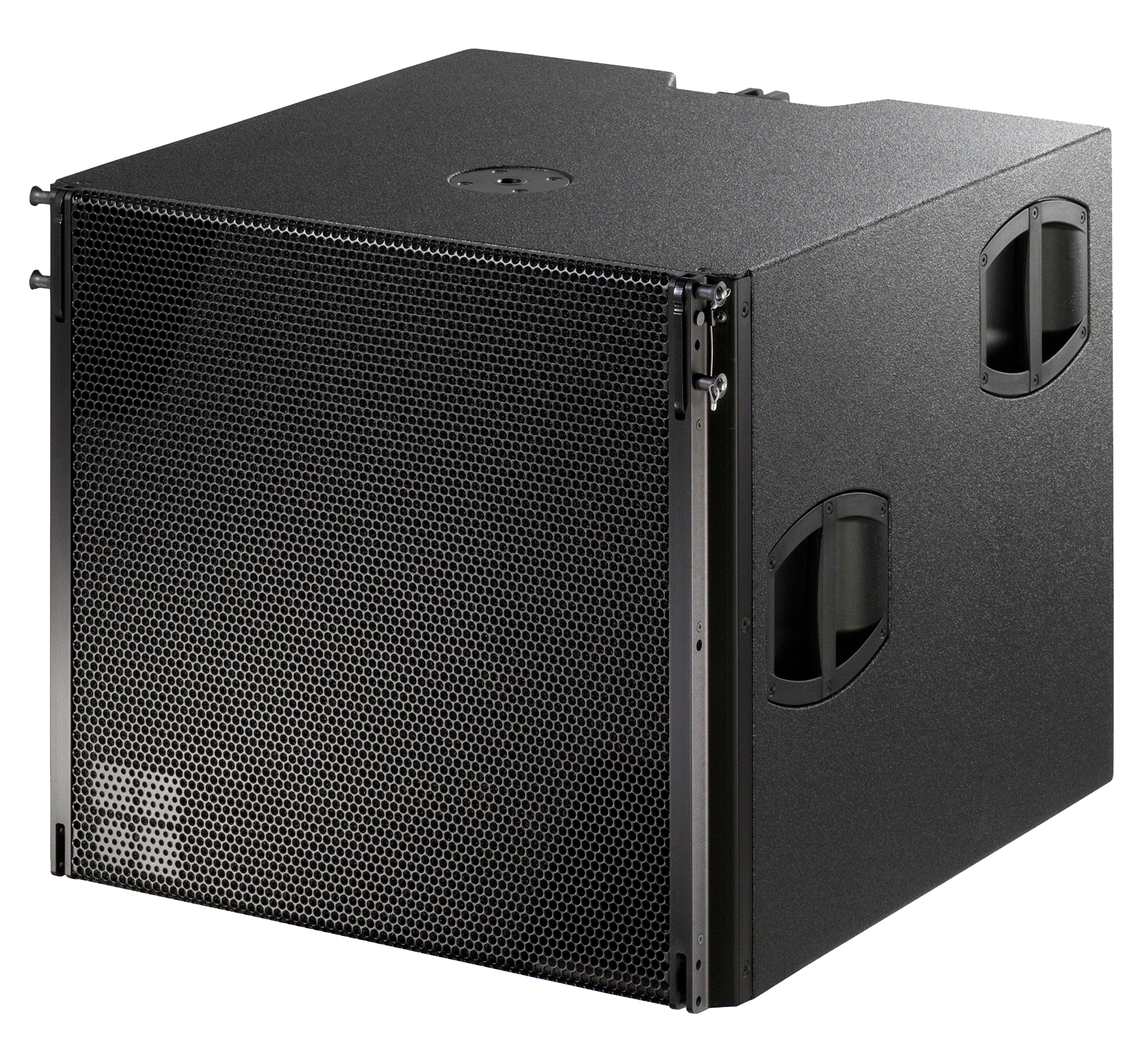

V & Y Series Subs
The d&b V and Y-Series subwoofers deliver precise, high-impact low-frequency reinforcement for both touring and installation applications. The V-SUB and Y-SUB are actively driven, cardioid subwoofers housing two long-excursion neodymium drivers — one forward-facing and one rear-facing — to achieve outstanding directivity control and reduced rear radiation. Capable of producing deep, punchy bass down to 37 Hz (V-SUB) and 39 Hz (Y-SUB), both models are flyable and ground stackable, offering flexible deployment options to suit any stage or venue. Seamlessly integrating with their respective full-range systems, they provide powerful, controlled, and musical low-end performance.
A Series

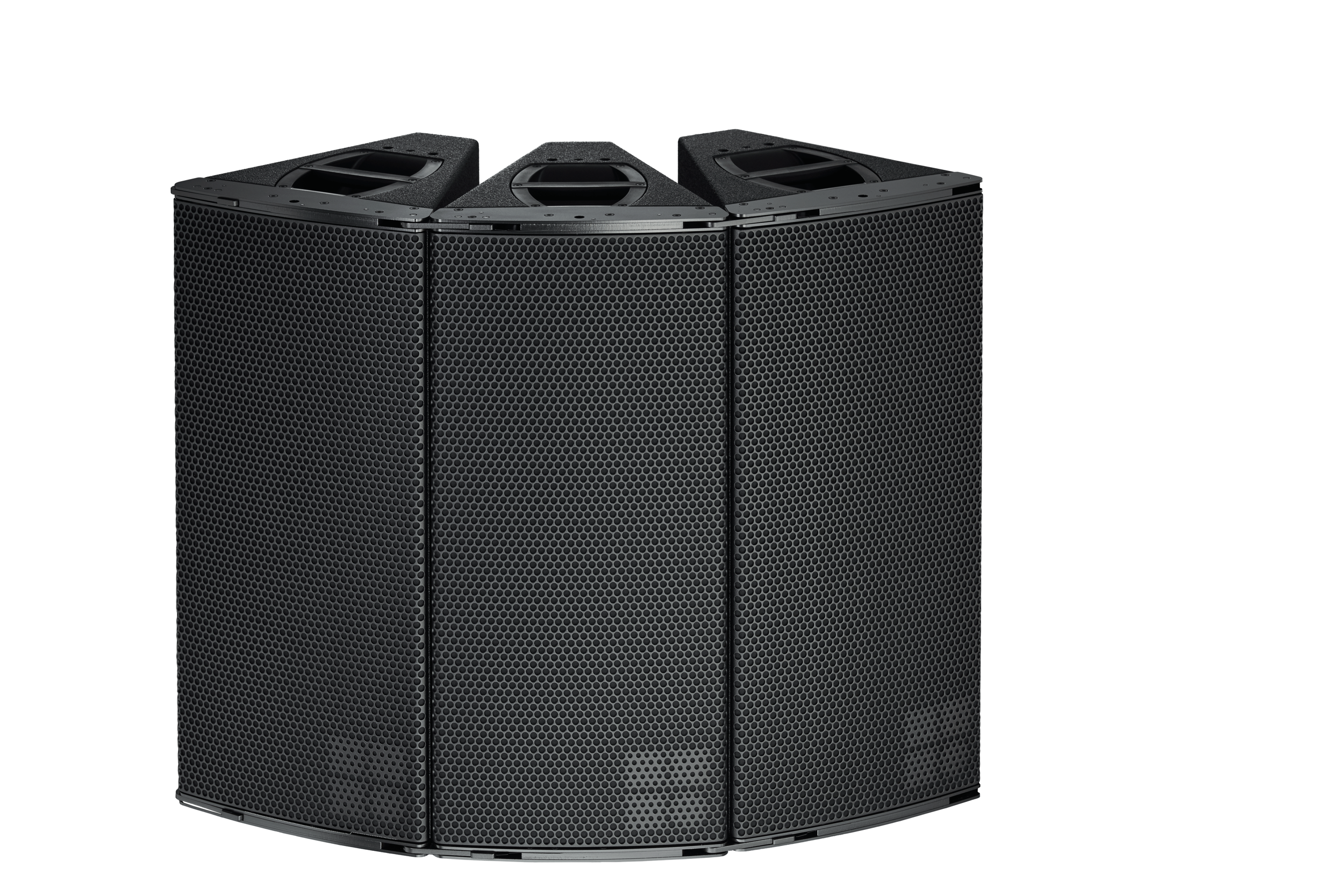

The d&b A-Series brings the flexibility of arrayable point-source design to a wide range of applications — from touring productions to permanent installations. Combining the output and control of a line array with the compact form and ease of a point source, the A-Series delivers exceptional coverage consistency and sonic quality. The touring models (A60, A90) feature rugged hardware and quick-deploy rigging for mobile use, while the installation versions (ALi60, ALi90) retain the same acoustic performance with refined mounting options, fixed connectors, and a choice of finishes suited to architectural integration. Whether on the road or permanently installed, the A-Series offers scalable, high-fidelity sound with the hallmark precision of d&b audiotechnik.
Installation Series
When specifying permanently installed audio systems you need more than raw SPL: you demand reliable performance, consistent coverage, predictable system behaviour, and serviceable choices. d&b’s installation-focused loudspeaker ranges deliver all of this and more. From full-range point-source cabinets to augmented array modules, each loudspeaker integrates into the broader d&b system approach — complete with amplifier compatibility, array-calculation software support, and mounting/rigging options built for installation.
Every loudspeaker in the d&b audiotechnik touring range is also available in a dedicated installation version, offering the same renowned performance, consistency and system integration trusted on the world’s biggest tours. These install variants retain the acoustic design, directivity control and tonal balance of their touring counterparts, while incorporating features tailored for permanent venues — including installation-friendly rigging hardware, discreet connector panels, a choice of finishes, and optional weather-resistant enclosures. With d&b, you can deliver true tour-grade sound in a system engineered specifically for fixed installations.
xS Series
The d&b xS-Series delivers the same outstanding sonic performance and consistency found across d&b’s touring systems, purpose-built for permanent installation. Designed for discreet integration into architectural spaces, the xS-Series combines precise dispersion, compact form factors, and exceptional speech and music clarity. Each loudspeaker features installation-friendly enclosures with flexible mounting options, rotatable horns, weather-resistant finishes, and colour choices to blend seamlessly into any environment. Matching performance with aesthetic versatility, the xS-Series brings true d&b touring-grade sound quality to theatres, houses of worship, hospitality spaces, and performance venues.
xC Series

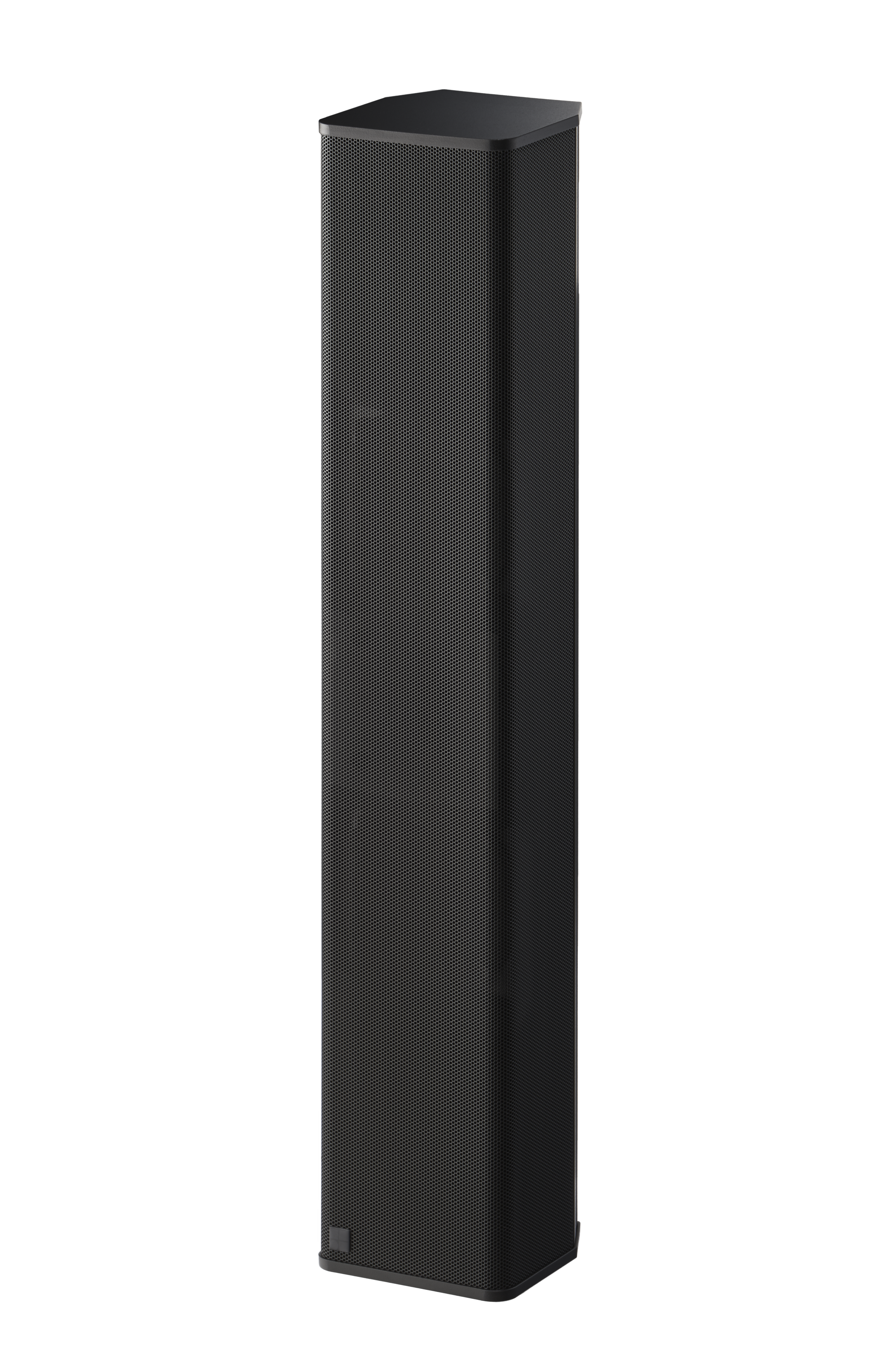

The d&b xC-Series is engineered specifically for speech and music reinforcement in acoustically challenging spaces, delivering exceptional clarity, directivity control, and intelligibility. Derived from d&b’s touring expertise, these column loudspeakers provide precise vertical dispersion and wide horizontal coverage, making them ideal for houses of worship, conference halls, and multipurpose venues. Designed for permanent installation, the xC-Series combines elegant, slimline enclosures with weather-resistant options, flexible mounting hardware, and a choice of finishes. The result is discreet visual integration paired with the unmistakable sonic precision of d&b audiotechnik — bringing tour-grade performance to fixed architectural environments.
Amplifiers & Networking
d&b amplifiers deliver precision power and protection, perfectly matched to their loudspeakers for reliable, high-fidelity performance in both touring and permanent installations. With integrated DSP and system control, they ensure every d&b system sounds its best, every time.
d&b Mobile Amplifiers
d&b mobile amplifiers deliver the precision, reliability, and power required for touring, rental, and mobile sound applications. Designed to handle the most demanding environments, each amplifier provides consistent performance, advanced protection, and seamless integration with d&b loudspeakers.
D25 – 4 channels, 4 × 1800 W @ 4 Ω, ideal for smaller systems and distributed setups
D40 – 4 channels, 4 × 2400 W @ 4 Ω, versatile for medium-sized touring rigs
D80 – 4 channels, 4 × 4000 W @ 4 Ω, high-power output for large-scale productions

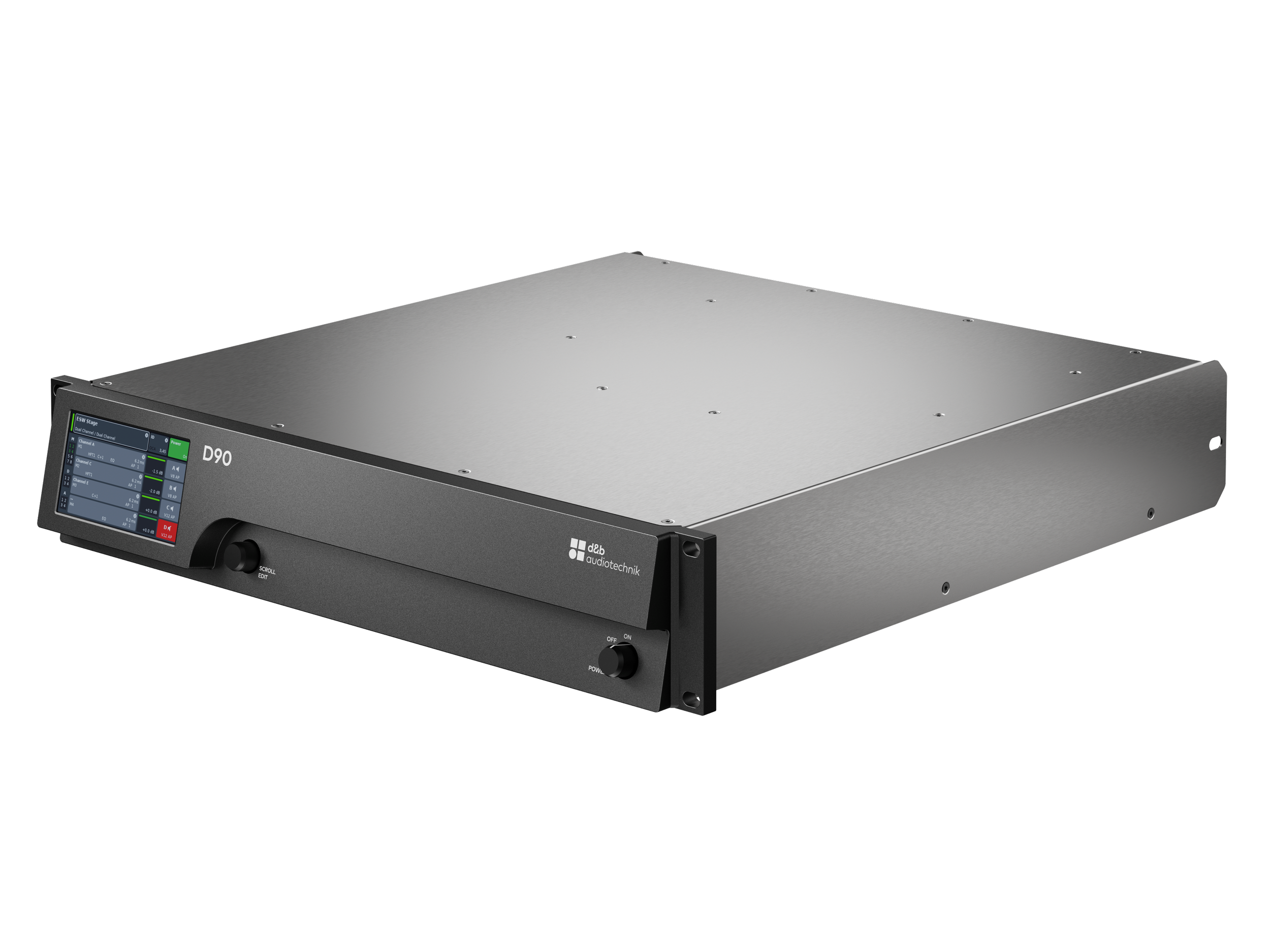

D90 – 4 channels, 4 × 5400 W @ 4 Ω, flagship performance for large arrays and subwoofer setups
From compact systems to arena-sized productions, d&b mobile amplifiers combine reliability, flexibility, and tour-grade sound quality, ensuring every show sounds as intended.
d&b Installation Amplifiers
d&b installation amplifiers are engineered to deliver precision, reliability, and power for permanent sound systems across various venues. Designed for fixed installations, each amplifier ensures consistent performance, advanced protection, and seamless integration with d&b loudspeakers, providing high-quality sound for years of operation.

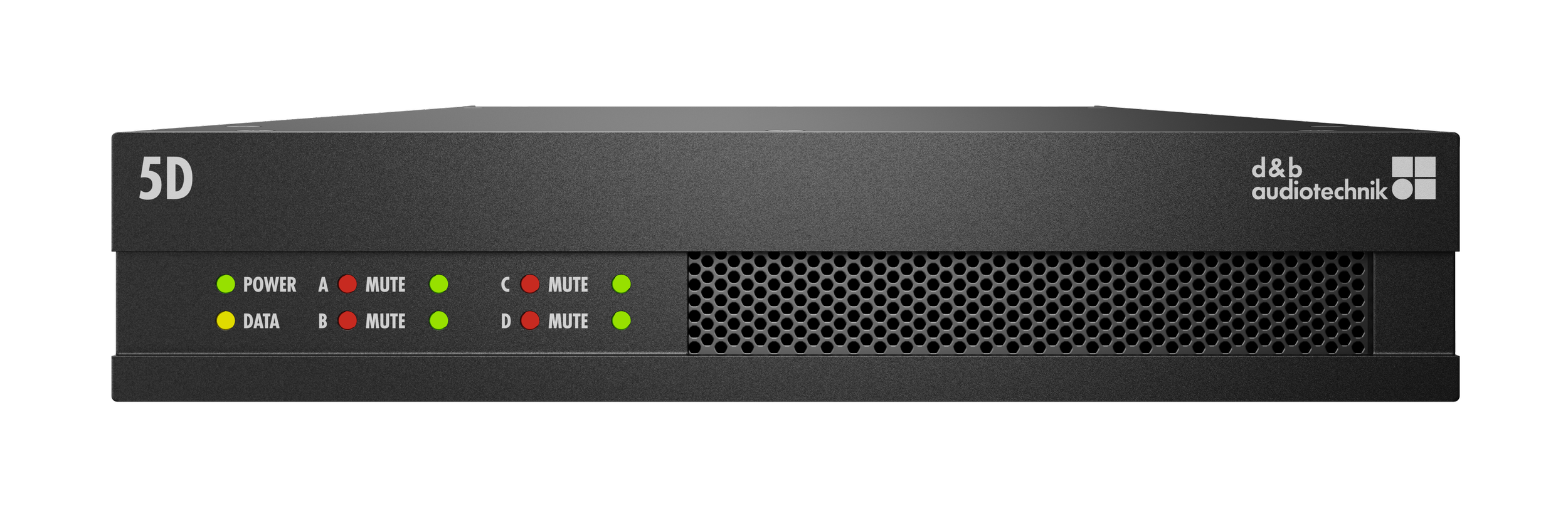

5D – 4 channels, 4 × 500 W @ 4 Ω
10D – 4 channels, 4 × 700 W @ 4 Ω
25D – 4 channels, 4 × 1800 W @ 4 Ω

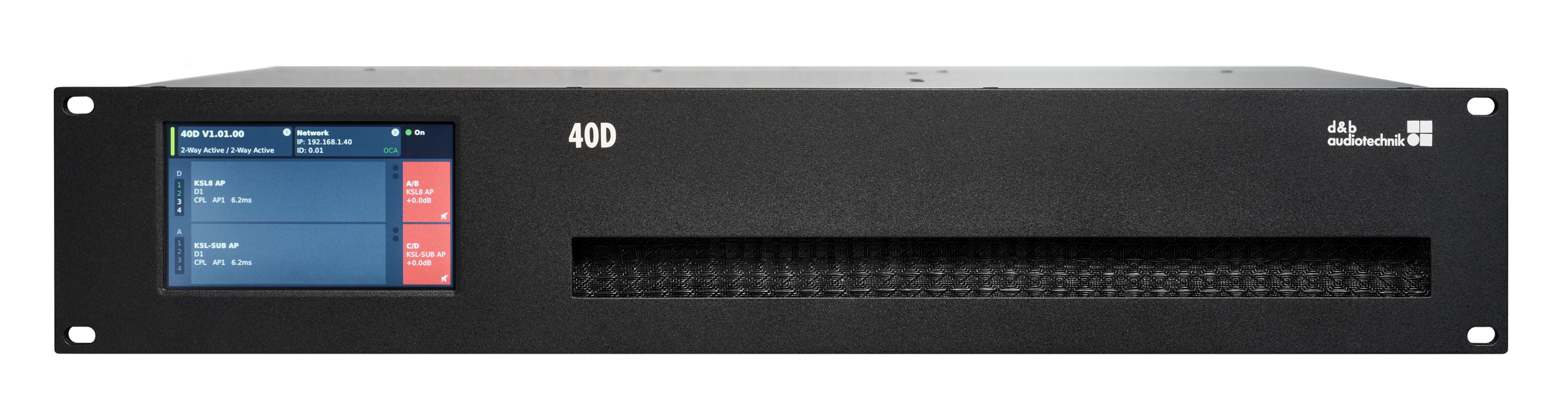

40D – 4 channels, 4 × 2400 W @ 4 Ω
80D – 4 channels, 4 × 4000 W @ 4 Ω
From small rooms to large auditoria, d&b installation amplifiers combine reliability, flexibility, and permanent-system-grade sound quality, ensuring every installation delivers clear, consistent audio for years to come.
