Yamaha
22live is now an Authorised Reseller for Yamaha Pro-Audio Products, including Rivage mixing consoles and associated products. We have a wealth of experience in specifying Yamaha systems and working with their products. Please get in touch for more info on all things Yamaha.
The Rivage PM Series
The latest Rivage PM consoles make the Rivage platform more accessible than ever, and with some great features it is setting a new benchmark for live sound.

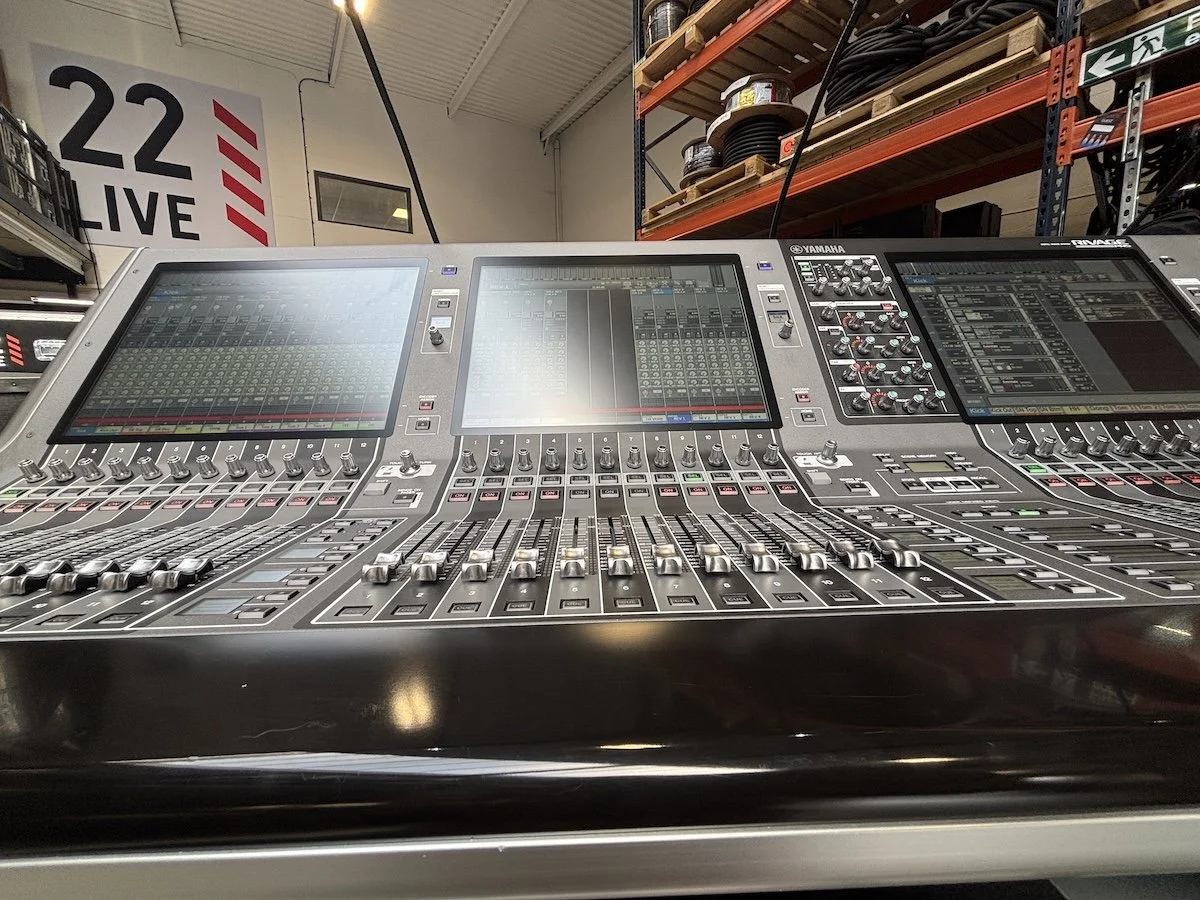

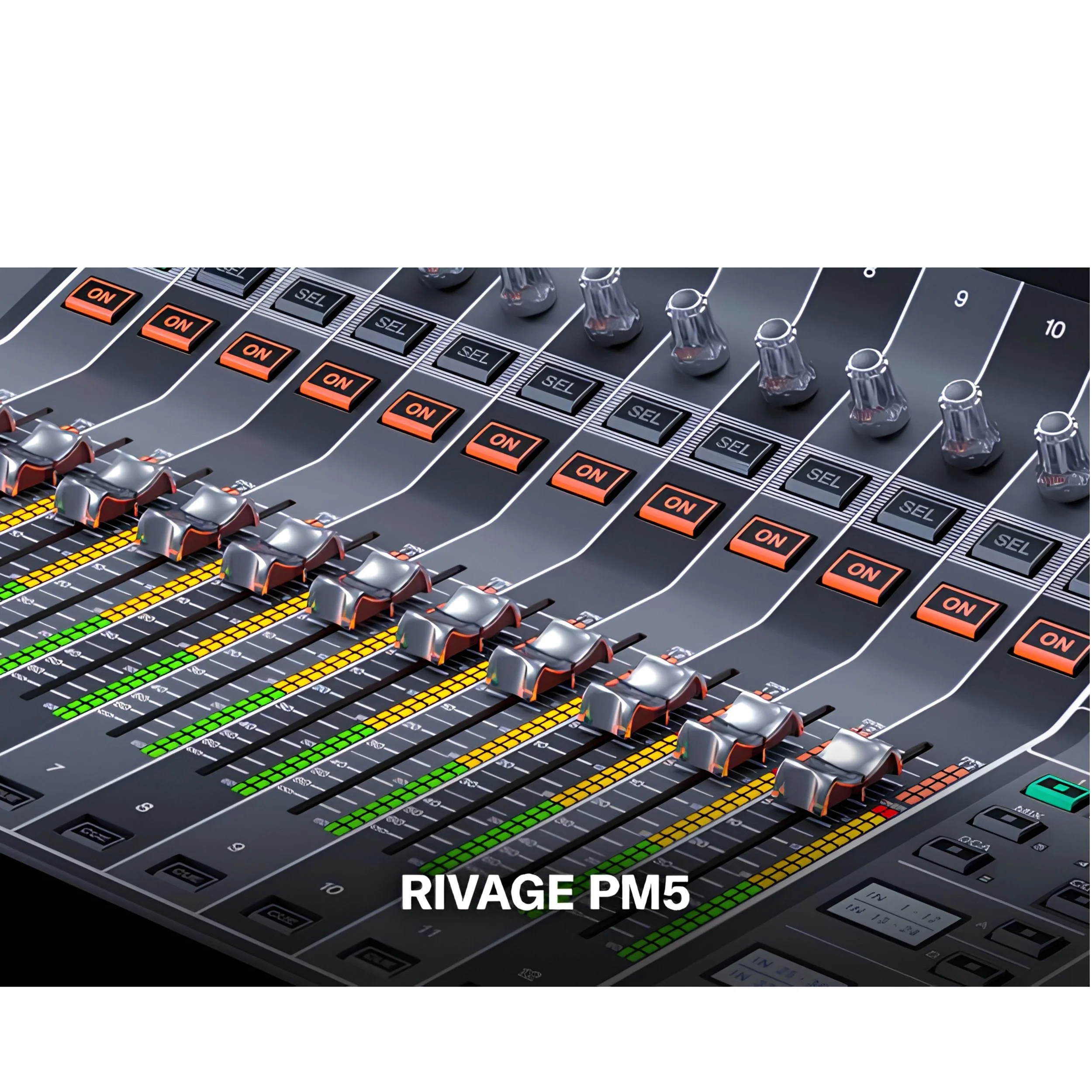

Rivage PM5 System
A PM5 System comprises, CS-R5 Control Surface, Either a DSP-RX Or DSP-RX-EX Engine and RPio Stage rack.
DSP-RX (120 mix channels) or DSP-RX-EX (288 mix channels).
RPio Stage Racks benefit from Rupert Neve Designs SILK processing circuitry
TWINLANe Fibre interface between DSP engine and the RPio Stage Racks
Rio Stage racks are also compatible with Rivage systems via Dante interfaces
CS-R5 Surface:
15" touch panel x 3
12-faders x 3 bays
Selected Channels - Dynamics, GAIN, HPF, EQ, PAN, Function Knob
User Defined Keys - 12 (x 4 banks)
User Defined Knobs - 3 (4 x 4 banks can be assigned)
42KG
Rivage PM3 System
A PM3 System comprises, CS-R3 Control Surface, Either a DSP-RX Or DSP-RX-EX Engine and RPio Stage rack.
DSP-RX (120 mix channels) or DSP-RX-EX (288 mix channels).
RPio Stage Racks benefit from Rupert Neve Designs SILK processing circuitry
TWINLANe Fibre interface between DSP engine and the RPio Stage Racks
Rio Stage racks are also compatible with Rivage systems via Dante interfaces
CS-R3 Surface:
15" touch panel x 1
12-faders x 3 bays
Selected Channels - Dynamics, GAIN, HPF, EQ, PAN, Function Knob
User Defined Keys - 12 (x 4 banks)
User Defined Knobs - 1 (4 x 4 banks can be assigned)
38KG
DSP-RX-EX
Superior capability of processing digital audio signals of up to 288 input, 72 MIX, 36 MATRIX, and two STEREO channels.
Net Weight: 20 kg (44.1 lbs)

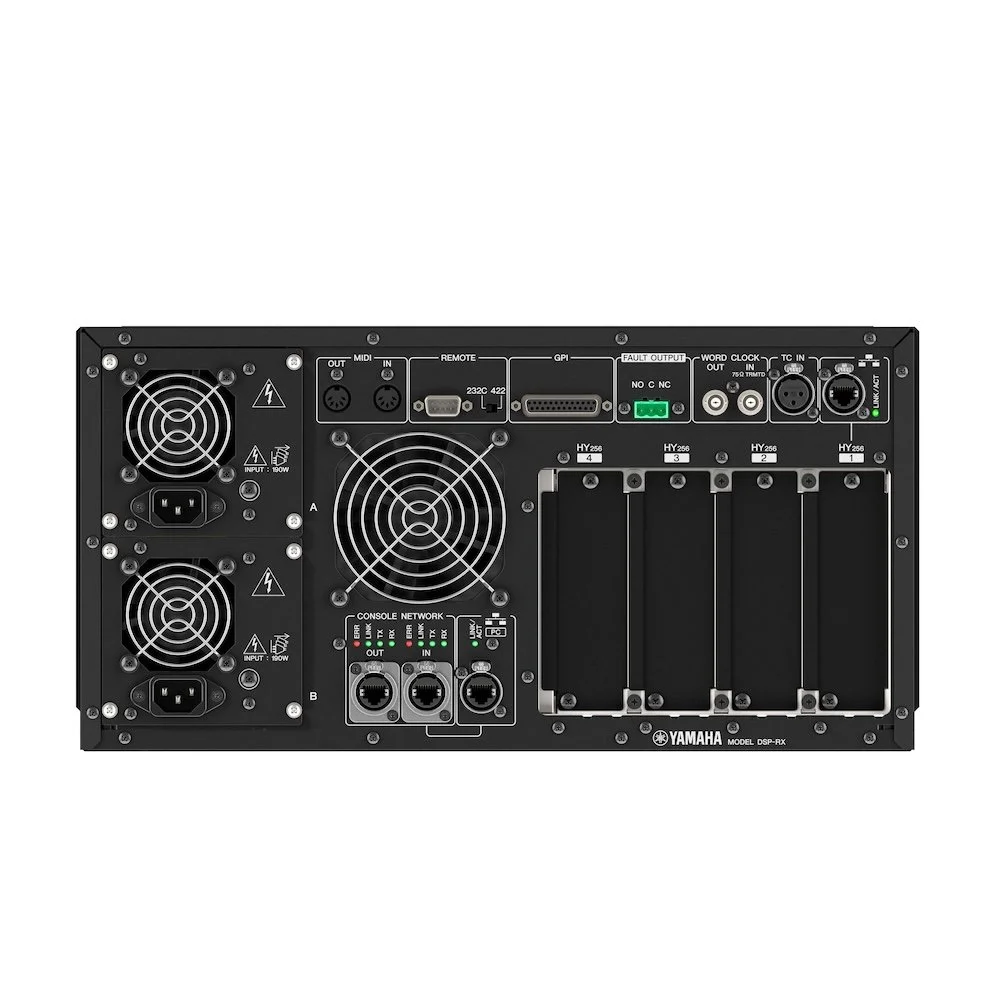

DSP-RX
Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.
DSP-RX can be later upgarded to DSP-RX-EX wiuth thr addition of the DEK-DSP-REX Kit.
Net Weight: 19 kg (41.9 lbs)
Both Engines
Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals. Available Cards:
HY256-TL - TWINLANe Fibre Interface (carries up to 256 simultaneous IO channels)
HY144-D - Dante Interface 144 simultaneous IO channels
HY144-D-SRC - Dante Interface 144 simultaneous IO channels with Sample Rate Conversion
HY128-MD - MADI Interface 128 simultaneous IO channels
Two Mini-YGDAI slots to support various audio formats.
Dual redundant power supply built-in
Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
Net Weight: 19 kg (41.9 lbs)
RPio Stage Racks
RPio come in 2 frame sizes:

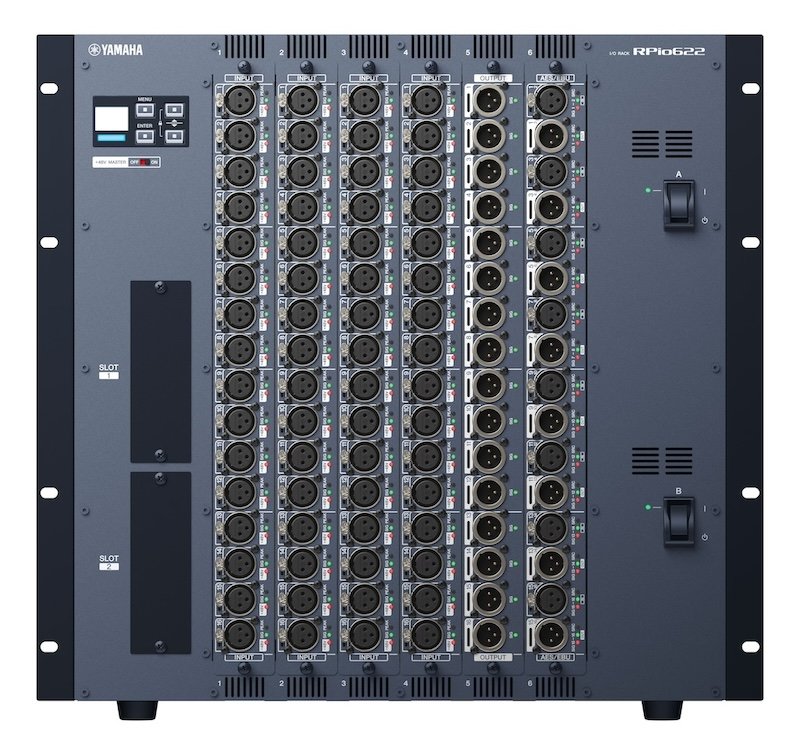

RPio622
Six RY card slots
Two HY card slots
Dual redundant power supply built-in
Dimensions (WxHxD): 480 x 455 x 489.7mm (18.9" x 17.9" x 19.3") (10U rack size)
Net Weight: 30 kg (66 lbs)
RPio222
Two RY card slots
Two HY card slots
Dual redundant power supply built-in
Dimensions (WxHxD): 480 x 232 x 491mm (18.9" x 9.1" x 19.3") (5U rack size)
Net Weight: 19 kg (41.9 lbs)
RY Cards
RY16-ML-SILK - 16 channel mic/line input card
RY16-DA - 16 channel line output card
RY16-AE - 16-channel digital AES/EBU I/O card
The DM Series
Yamaha has been a pioneer in digital mixing since it’s inception. The DM Series heralds a third generation of digital mixing console from the Japanese superpower, and in a package that is now deliverable and available from 22live.

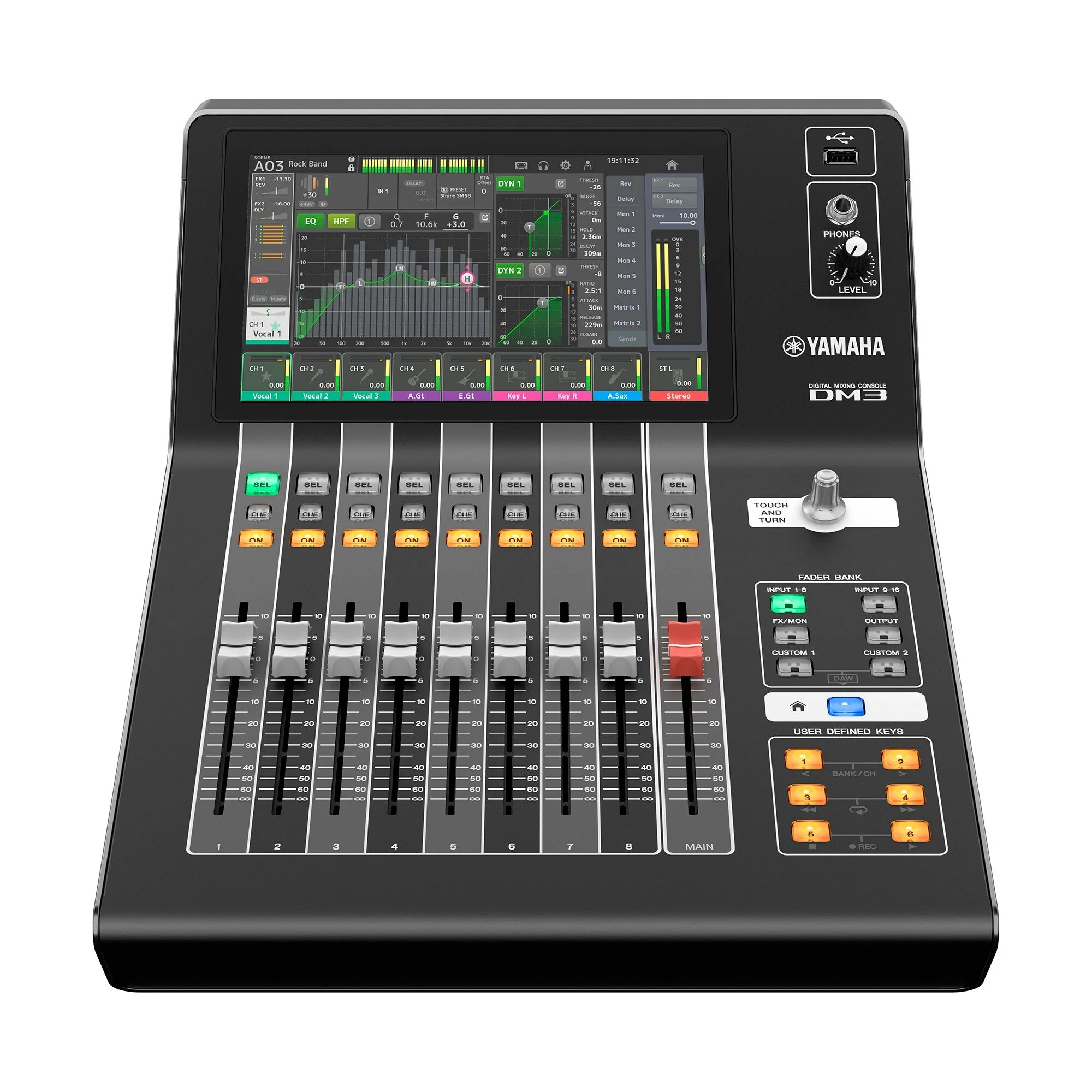

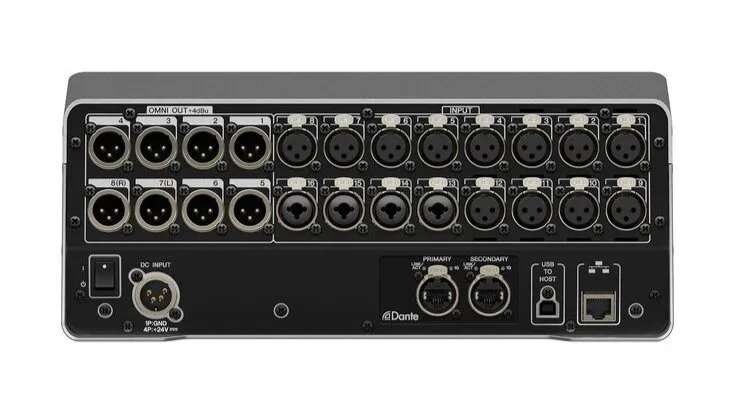

DM3 Digital Mixing Console
The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features with 8 + 1 fader configuration and 9-inch multi-touch screen.
Input mixing channels: 16 mono + 1 stereo + 2 FX return
Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
Dante: 16 inputs, and 16 outputs
USB: 18 inputs, and 18 outputs
18 Effects, and GEQ on Mix 1-6 and Stereo channels
Sampling rate: 48kHz/96kHz
Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
Net weight: 6.5 kg
With downloadable apps as standard for increased control and system planning:
DM3 StageMix - for remote control and monitoring of your DM3 Series mixing console.
MonitorMix - for individual wireless AUX mixing
VST Rack - plug-in host software that uses VST plug-ins, letting you create the exact effect rack you want.

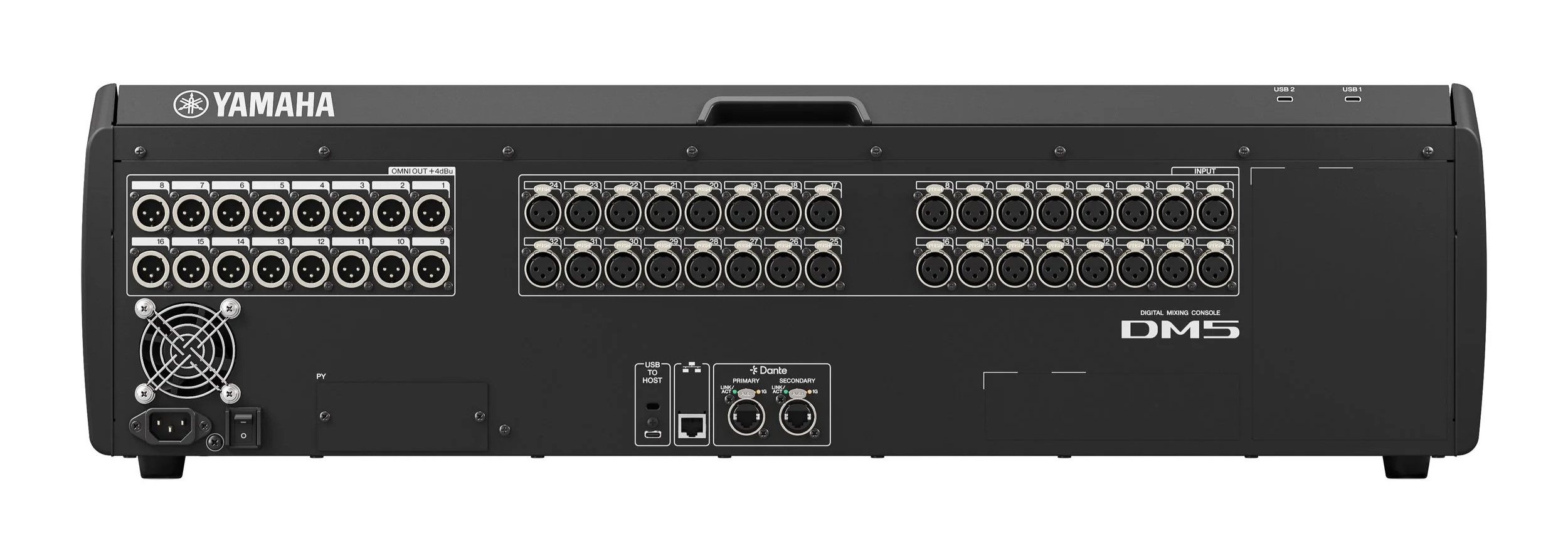

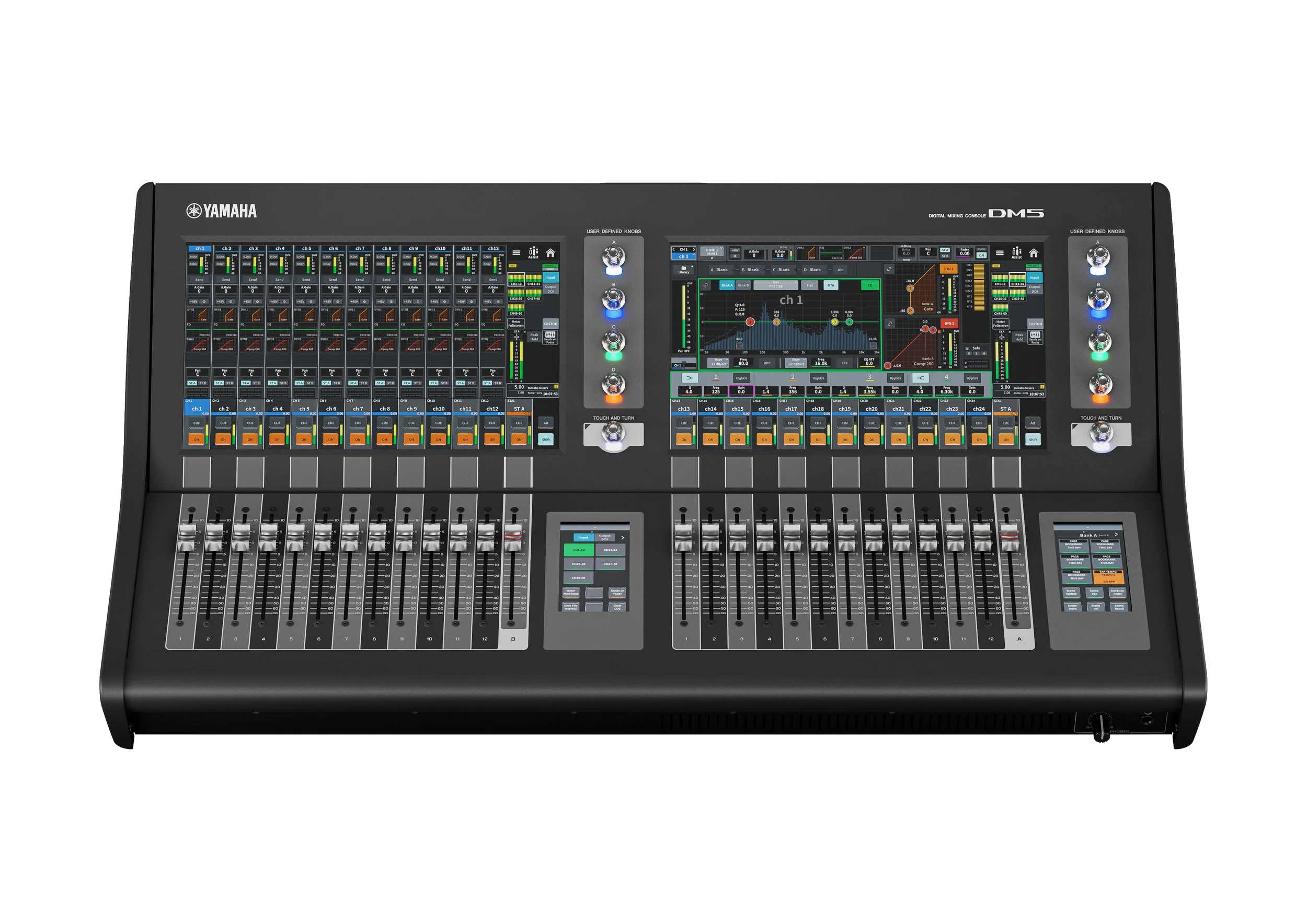

DM5 Digital Mixing Console
Designed for small to mid-sized live sound, corporate events, houses of worship, theatre and broadcast, the Yamaha DM5 features up to 64 in/out of industry-standard Dante networking at 96 kHz, 24 mix busses, 12 matrices, 12 DCAs, two stereo busses, 18 channels of USB I/O, and Bluetooth audio playback.
Input mixing channels: 60 mono
Buses: 24 Mix + 12 Matrix + 2 Stereo
12 DCA Groups, 12 mute/dim groups
Display: 2 x 13,3" tiltable multi touch screens, 2 x 4,3" multi touch Utility scherm
Faders: 26 100 mm touch-sensitive faders (2 x 12 + 1)
Analog I/O: 32 inputs / 16 outputs
Dante-interface: 64 inputs / 64 outputs
USB-C Audio Interface and Bluetooth Audio Playback
16 effects, 24 PEQ/GEQ
12 channels Dugan Automixing (Expandable to 60 by optional DEK-DUGAN)
Slot: PY Slot x 1
Sampling frequency: 96 kHz / 48 kHz
Dimensions (W x H x D): 826 x 235 x 441 mm
Net Weight: 21,5kg
Included: Power cord, Dust cover, Nuendo Live, VST Rack Elements
Optional extended feature packages for broadcast and theatre applications are available, as well as additional Dan Dugan auto mixing.

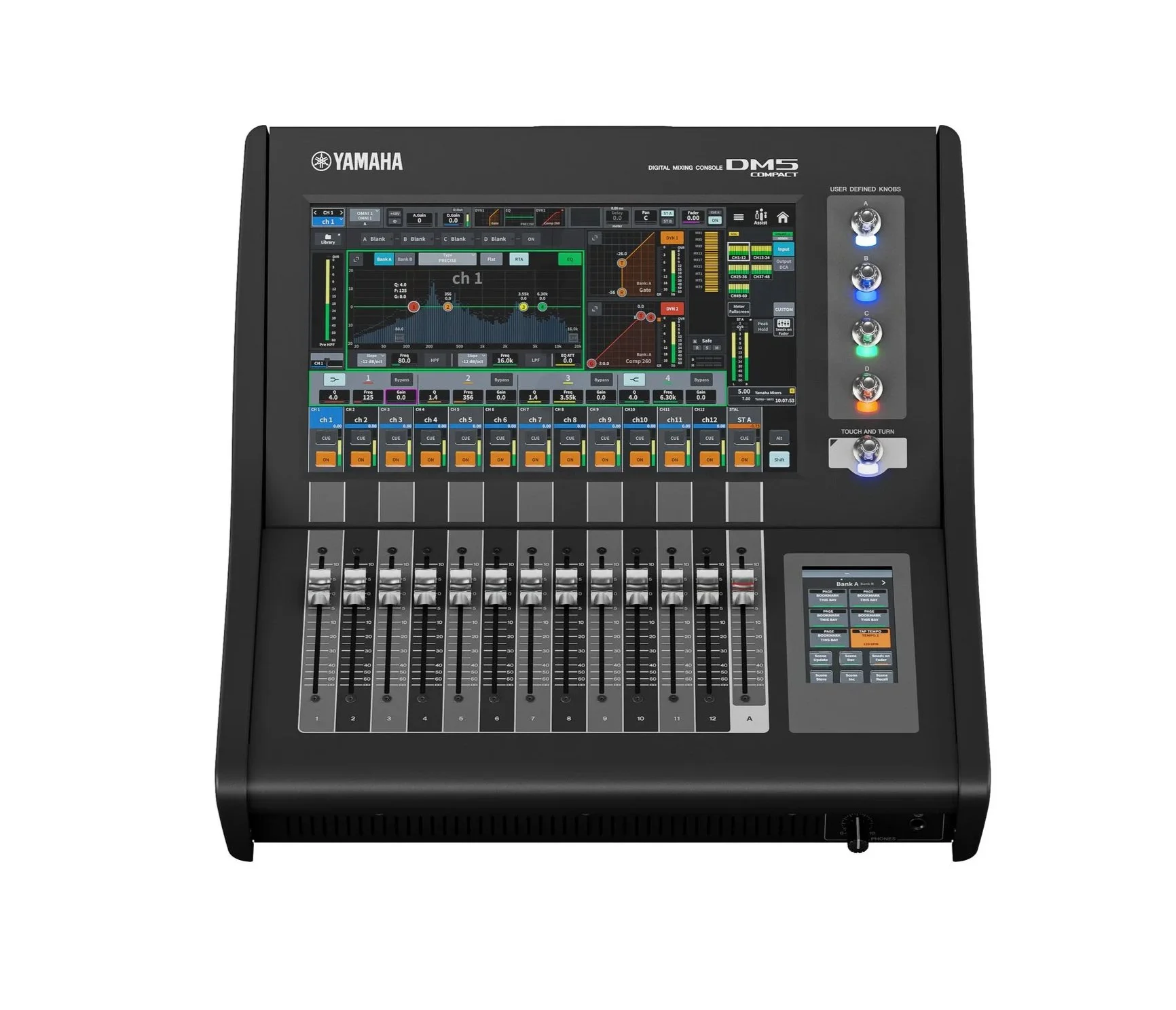

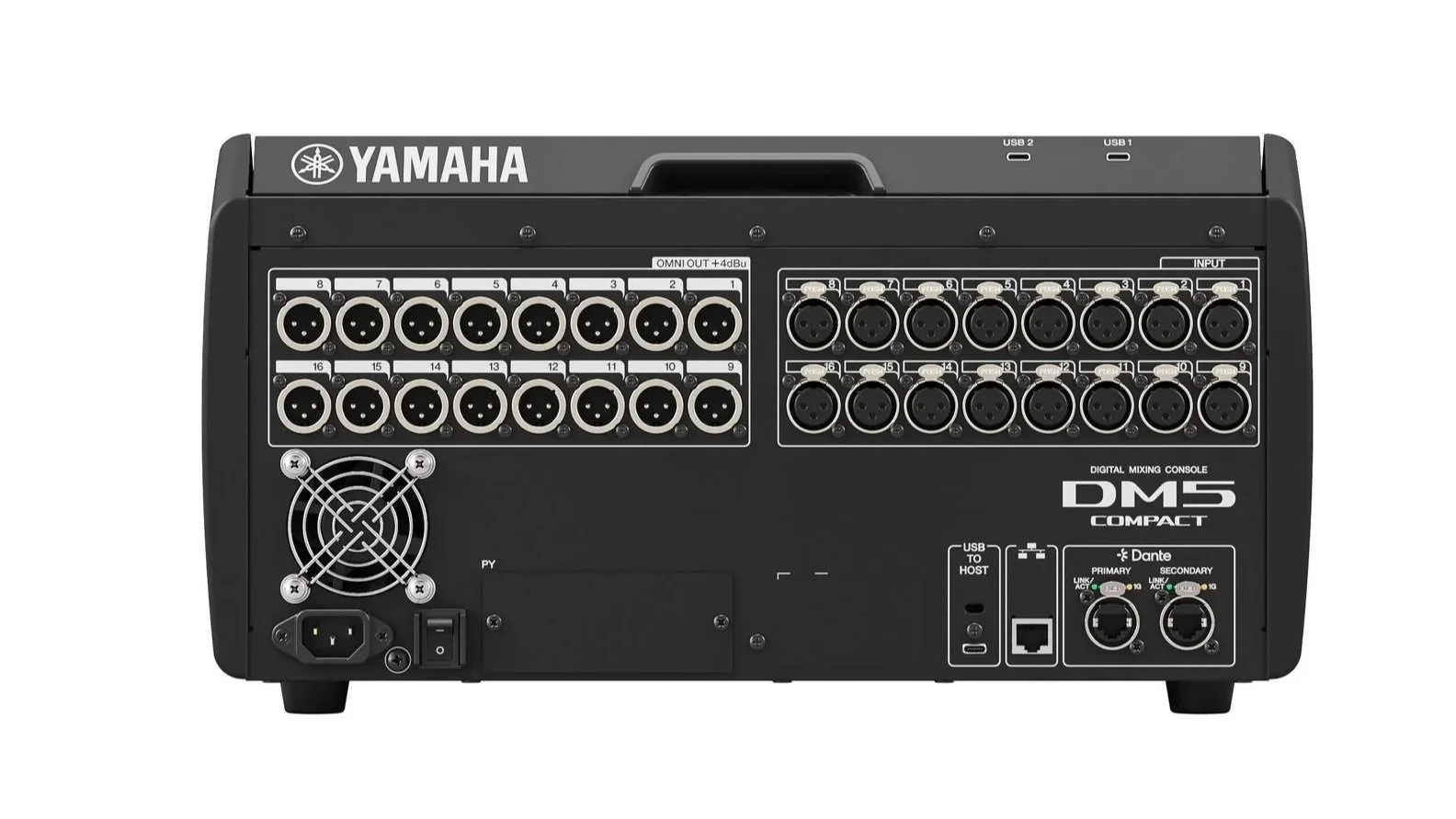

DM5C Compact Digital Mixing Console
The DM5 Compact includes an equally impressive feature-set all housed within a smaller footprint. 64 in/out of industry-standard Dante networking at 96 kHz, 24 mix busses, 12 matrices, 12 DCAs, two stereo busses, 18 channels of USB I/O, and Bluetooth audio playback, and a rack-mountable with an optional RK1 rack mount kit.
Input mixing channels: 48 mono
Buses: 24 Mix + 12 Matrix + 2 Stereo
12 DCA Groups, 12 mute/dim groups
Display: 1 x 13,3" tiltable multi touch screens, 1 x 4,3" multi touch Utility scherm
Faders: 13 100 mm touch-sensitive faders (2 x 12 + 1)
Analog I/O: 16 inputs / 16 outputs
Dante-interface: 64 inputs / 64 outputs
USB-C Audio Interface and Bluetooth Audio Playback
16 effects, 24 PEQ/GEQ
12 channels Dugan Automixing (Expandable to 60 by optional DEK-DUGAN)
Slot: PY Slot x 1
Sampling frequency: 96 kHz / 48 kHz
Dimensions (W x H x D): 446 x 235 x 441 mm
Net Weight: 13,3kg
Included: Power cord, Dust cover, Nuendo Live, VST Rack Elements
Optional extended feature packages for broadcast and theatre applications are available, as well as additional Dan Dugan auto mixing.

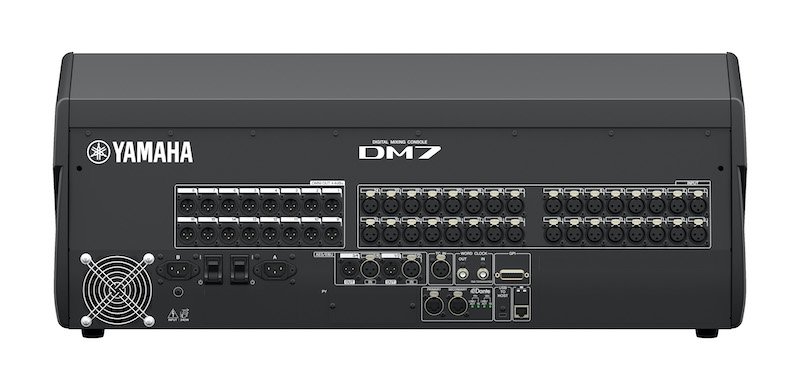

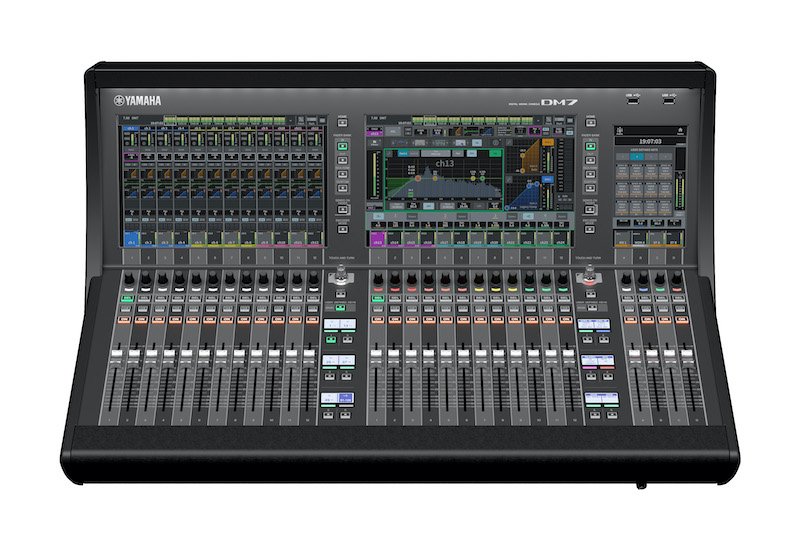

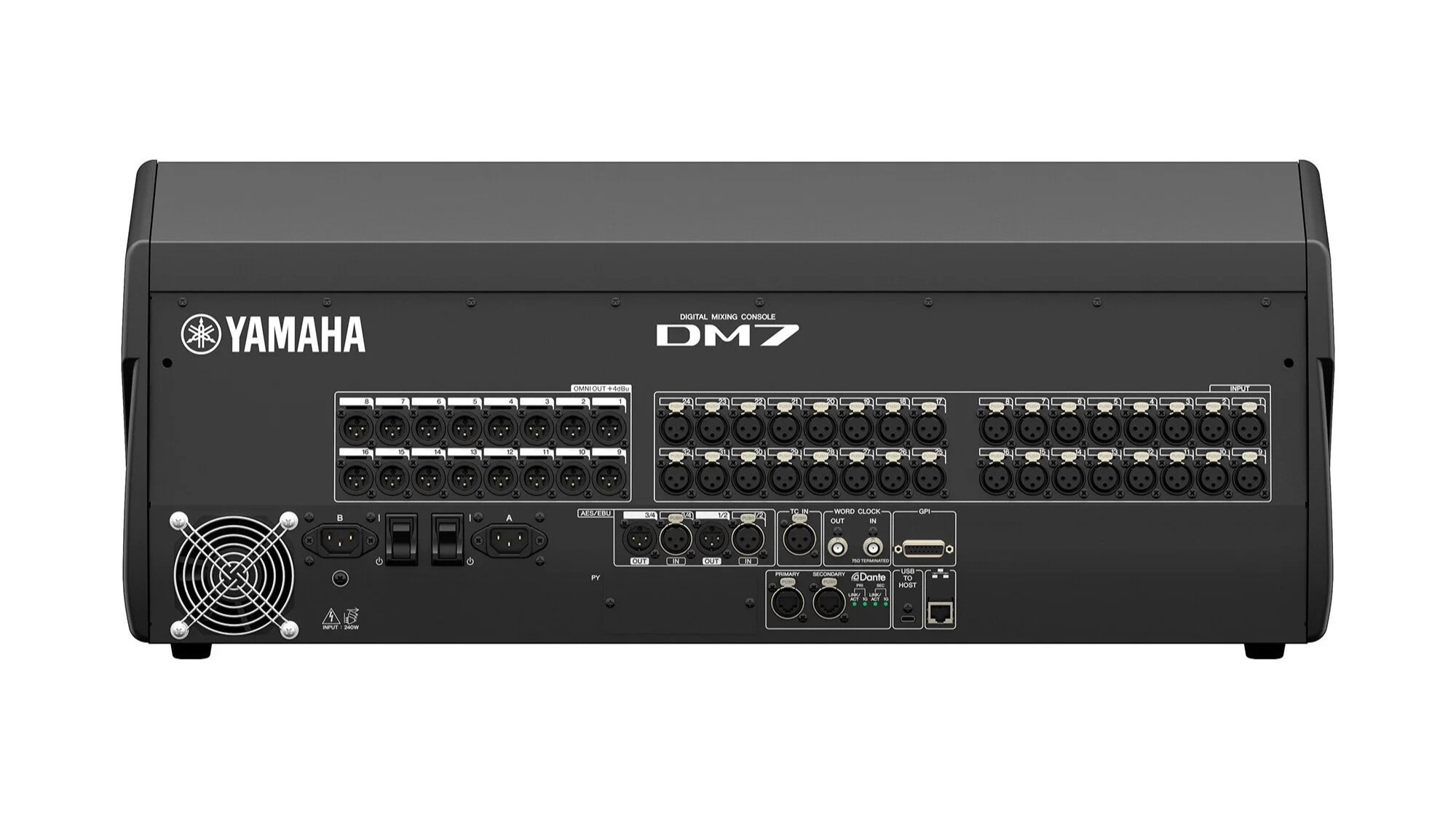

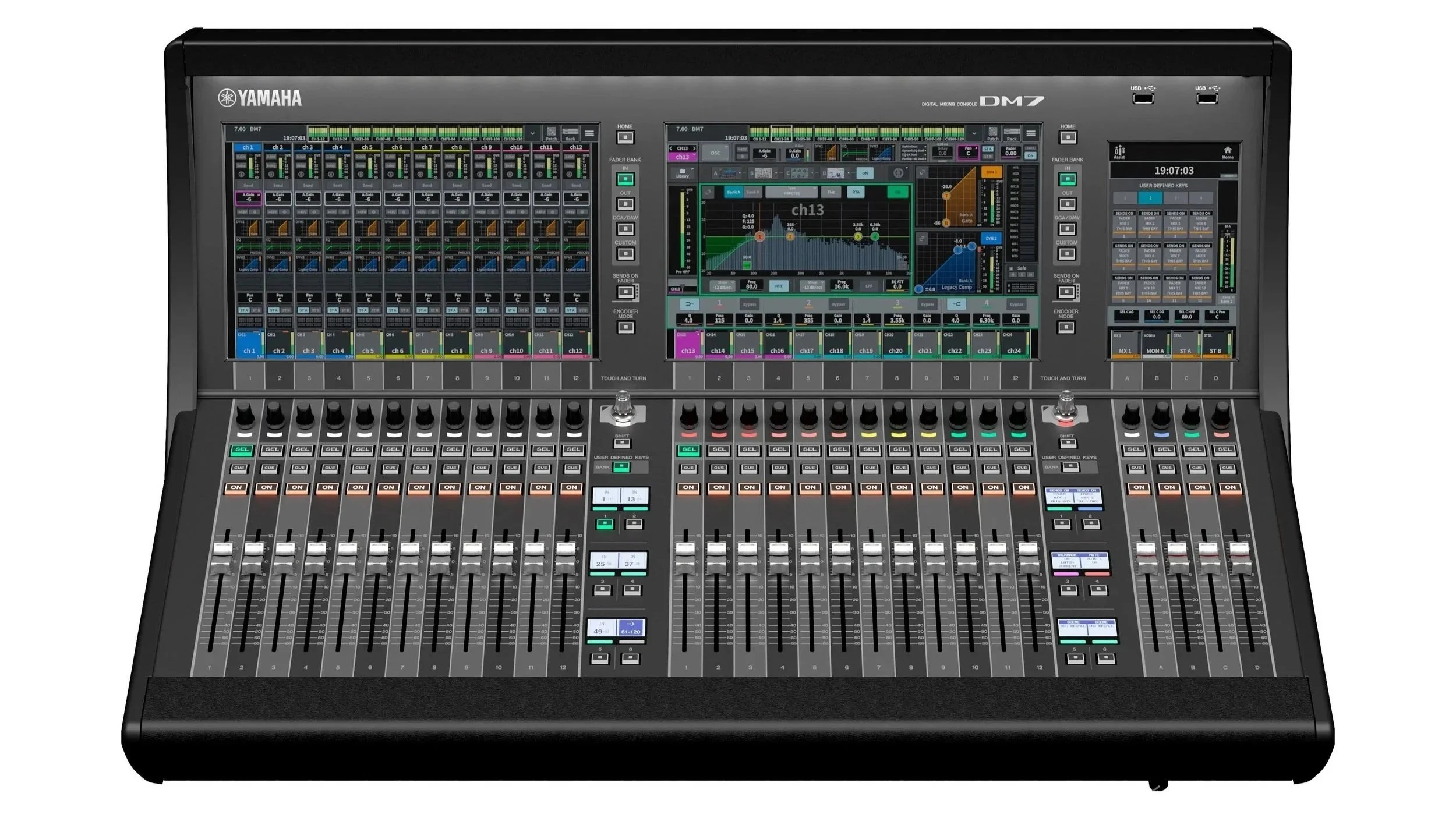

DM7 Digital Mixing Console
The DM7 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and a 2 x 12” + 1 x 7” multi-touch screen.
Input mixing channels: 120 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 2, 7" multi-touch screen x 1
Faders: 28 (12 + 12 + 4)
Analog I/O: 32 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 2 in / 2 out (with SRC)
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3" x 12.8" x 22.2")
Net Weight: 23.5 kg (51.8 lb)

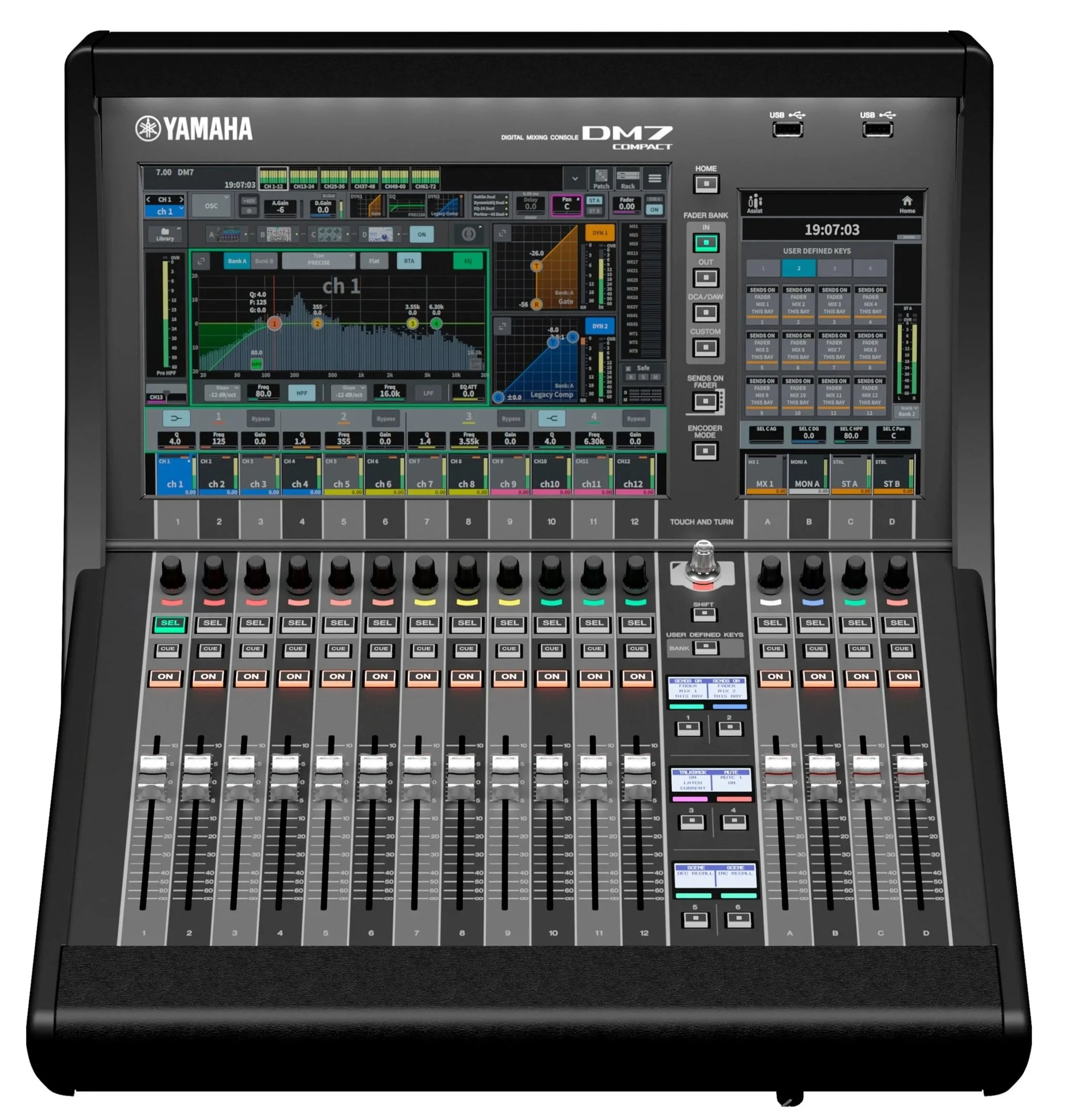

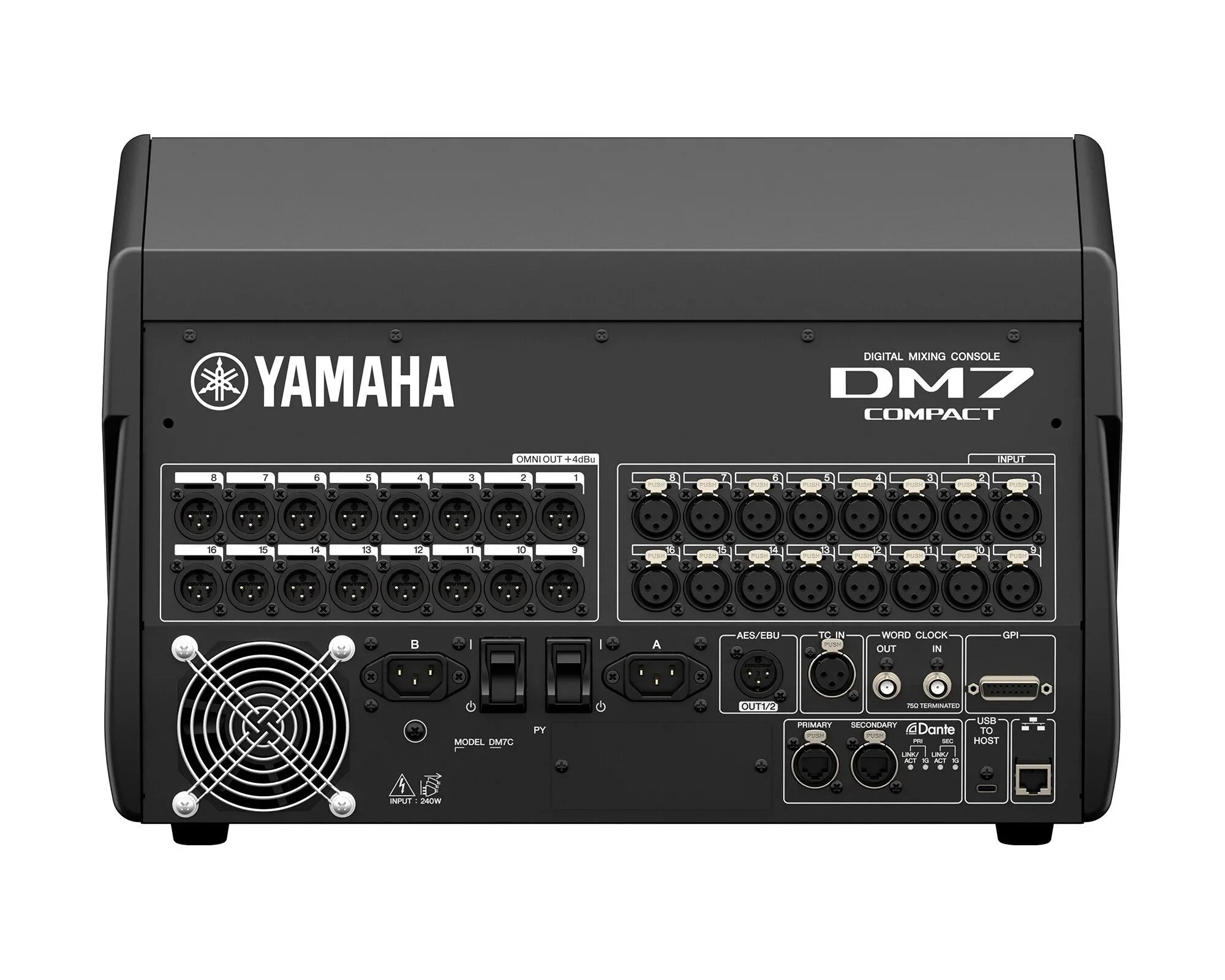

DM7C Compact Digital Mixing Console
The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
Input mixing channels: 72 mono
Buses: 48 Mix + 12 Matrix + 2 Stereo
Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
Faders: 16 (12 + 4)
Analog I/O: 16 inputs / 16 outputs
Dante: 144 in / 144 out
AES/EBU: 1 out
Slot: PY Slot x 1
USB Audio Interface: 18 in / 18 out
Power supply: Redundant power supply built-in
Power consumption: 240 W
Dimensions (W x H x D): 468 mm x 324 mm x 564 mm (18.5" x 12.8" x 22.2")
Net Weight: 16.5 kg (36.4 lb)
IO Racks
The Yamaha Rio3224-D3 and Rio1608-D3 are the perfect partners to the DM7 series desks and so are what we feature here.
Other racks are available; The RPio racks which feature the Rupert Neve pre-amps and only to be partnered with Rivage PM series consoles.
Or if you’re looking for something lower budget we can also supply Tio racks which are also Dante equipped to partner with Yamaha consoles (in particular TF series).
Please contact us for information and quotes on any Yamaha Pro-Audio Products.
Rio1608-D3
This Dante-compatible unit features 16 analog inputs and 8 analog outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio1608-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.
Analog I/O: 16 inputs / 8 outputs
Dante: 10 receive / 16 transmit channels
Comprehensive display and local control of gain, delay and other parameters.
Dual power supply units are built in for high reliability.
Onboard headphone socket
Power consumption: 60 W
Dimensions (WxHxD): 480 x 132 x 370 mm (18.9” x 5.2” x 14.6”)
Net Weight: 9.4 kg (20.7 lb)
Rio3224-D3
This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.
Analog I/O: 32 inputs / 16 outputs
AES/EBU: 8 outputs
Dante: 26 receive / 32 transmit channels
Comprehensive display and local control of gain, delay and other parameters.
Dual power supply units are built in for high reliability.
Onboard headphone socket
Power consumption: 100 W
Dimensions (WxHxD): 480 x 220 x 370 mm (18.9” x 8.7” x 14.6”)
Net Weight: 13.2 kg (29.1 lb)
RUio Stage Racks
All of these R series scalable, utility I/O units are fully compatible with Yamaha’s DM7, DM5 and DM3 series digital mixing consoles and flagship RIVAGE PM series digital mixing systems.

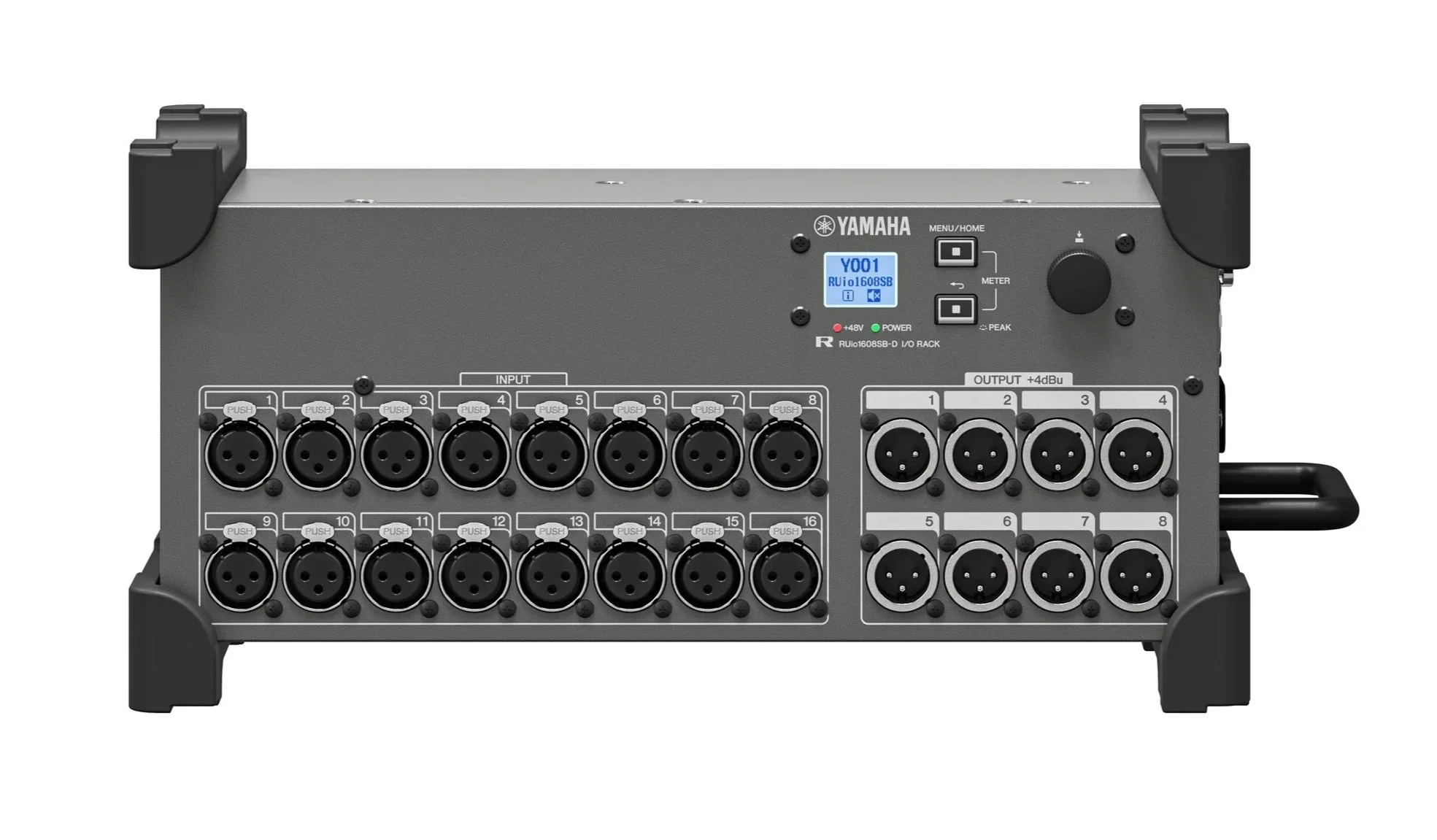

RUio1608SB-D
The RUio1608SB-D is a compact, stagebox-type I/O unit with primary and secondary Dante ports alongside 16 analogue inputs and 8 analogue outputs. Featuring rugged rubber protectors for reliable onstage use and a carrying bar, an optional rackmount kit is available.
Local I/O: 16 Mic/Line inputs, 8 outputs
Dante primary / Secondary
Sampling frequency: 96 kHz / 48 kHz
3rd port for control
Comprehensive display and local control of settings 19" with optional RK-SB1608SB-D
Included: Power cord

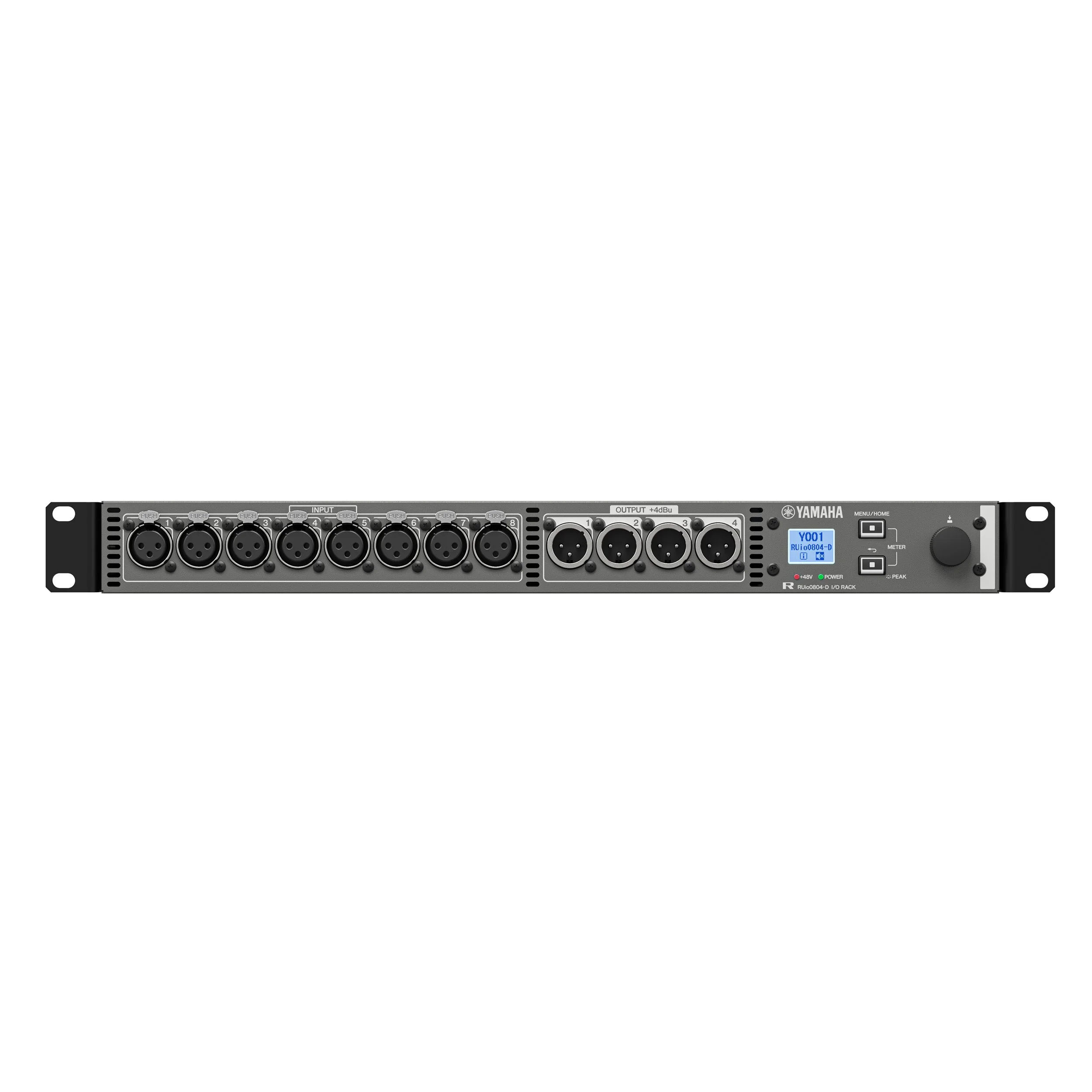

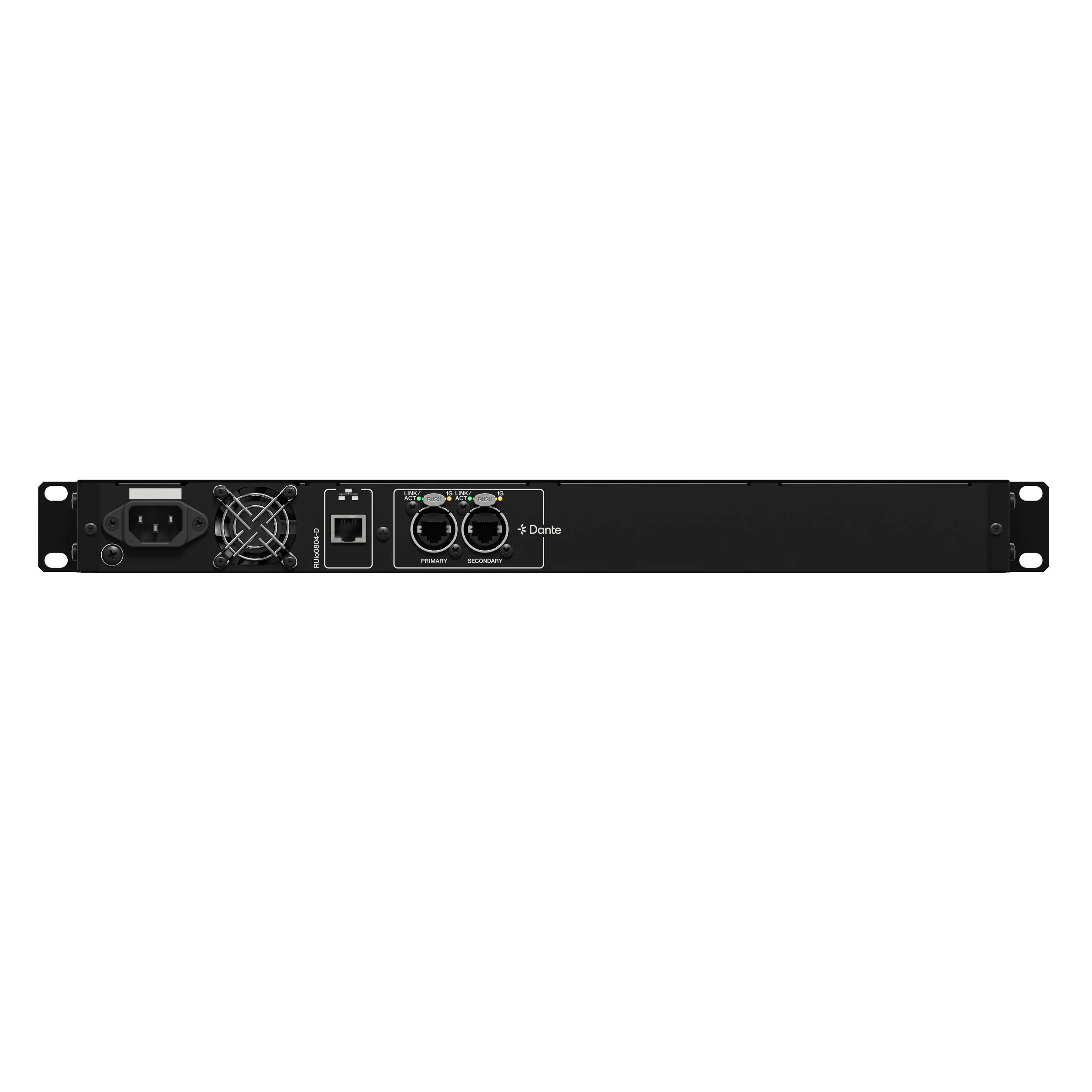

RUio0804-D
The RUio1608SB-D is a compact, stagebox-type I/O unit with primary and secondary Dante ports alongside 16 analogue inputs and 8 analogue outputs. Featuring rugged rubber protectors for reliable onstage use and a carrying bar, an optional rackmount kit is available.
The RUio0804-D is a 1U I/O rack featuring primary and secondary Dante ports alongside 8 analogue inputs and 4 analogue outputs, ideal for adding limited extra I/O for a wide range of live and installed audio applications.
Local I/O: 8 Mic/Line inputs, 4 outputs
Dante primary / Secondary
Sampling frequency: 96 kHz / 48 kHz
3rd port for control
Comprehensive display and local control of settings
Included: Power cord

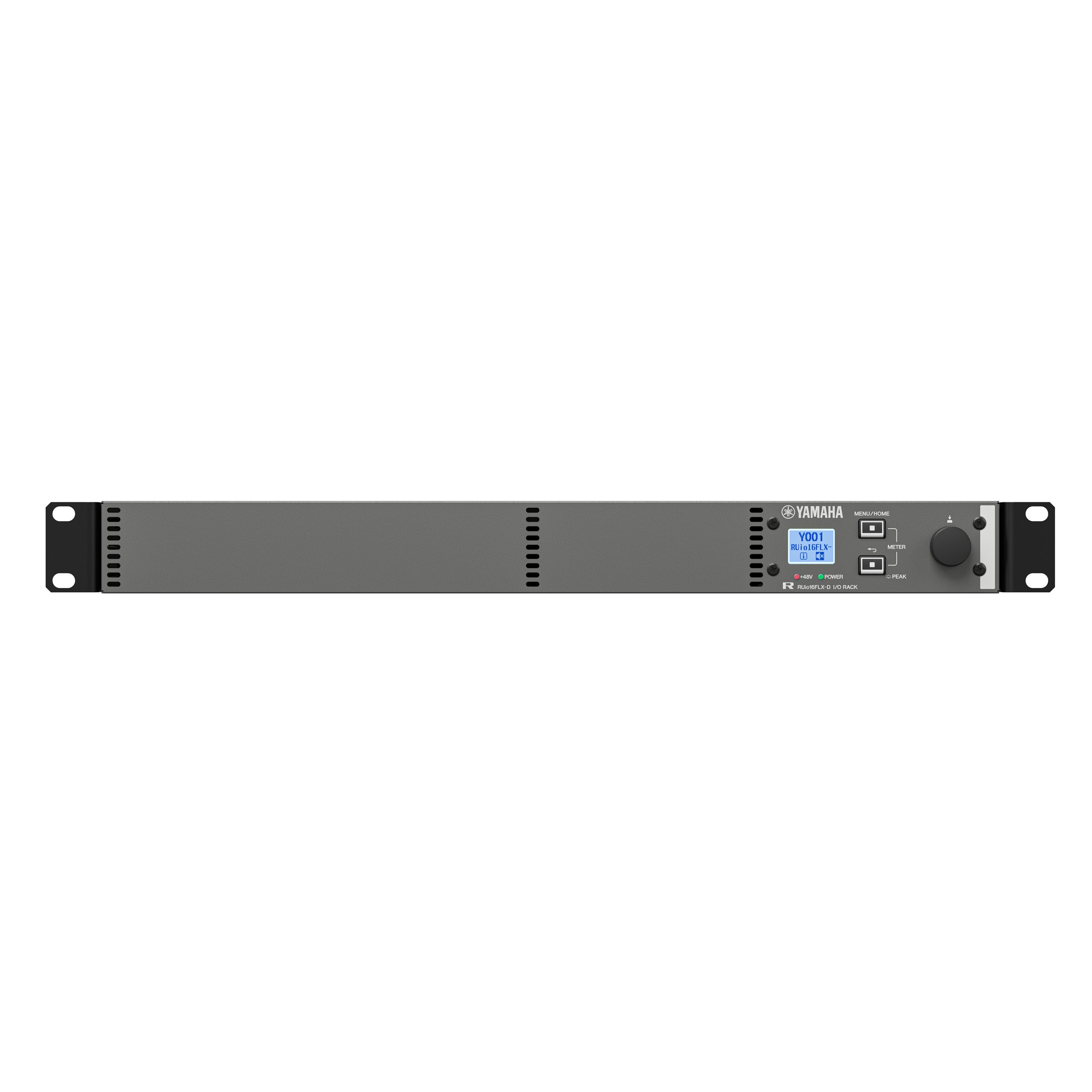

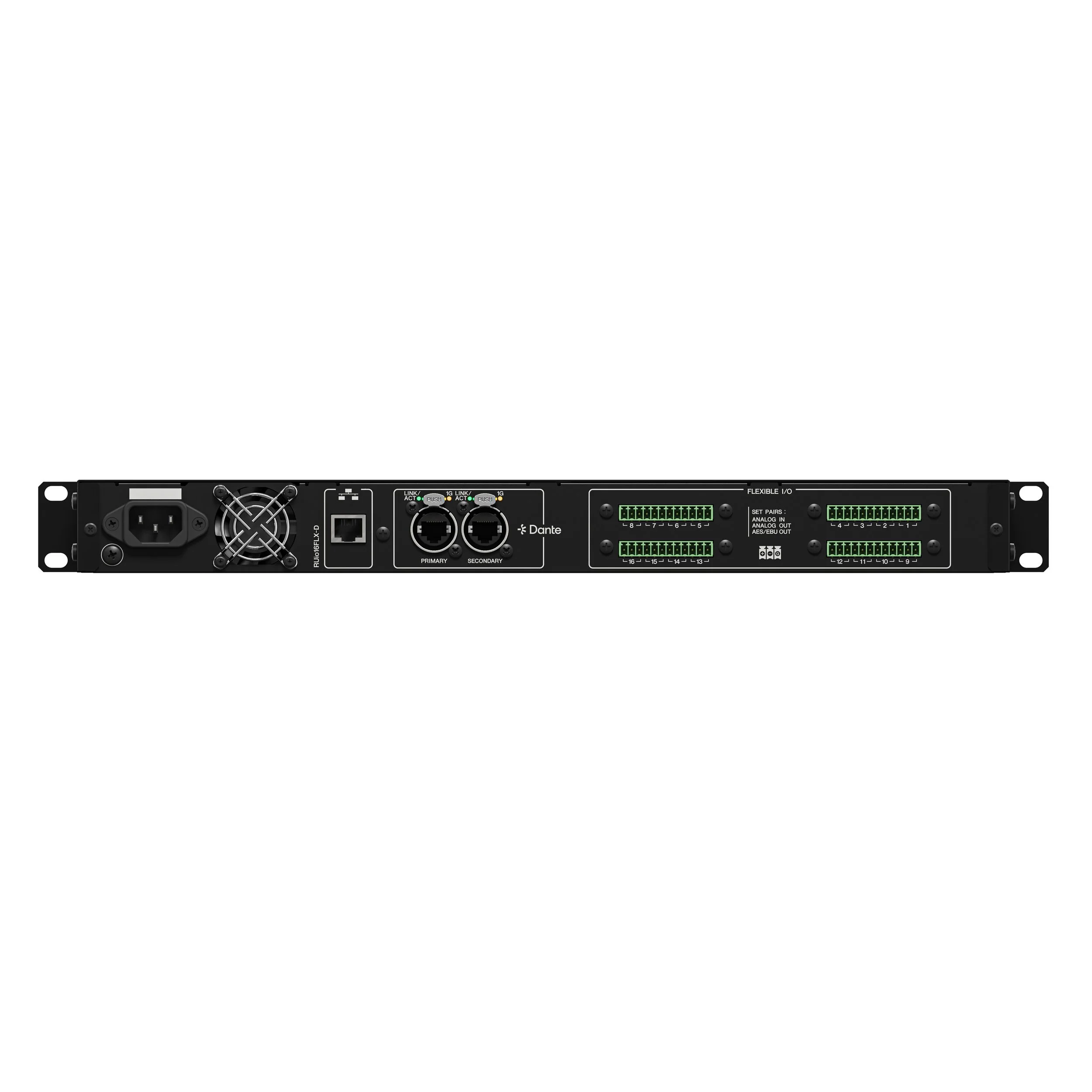

RUio16FLX-D
The RUio16FLX-D is an extremely flexible 1U unit with 16 channels of I/O that can be flexibly configured in pairs as Dante I/O, analogue mic/line inputs, analogue outputs or AES/EBU outs. It’s a uniquely versatile device for fully scalable audio installations in a host of different applications.
Local I/O: 16 connections
Selectable per connection pair: Mic/Line input, output or AES output
Dante primary / Secondary
Sampling frequency: 96 kHz / 48 kHz
3rd port for control Comprehensive display and local control of settings
Included: Power cord, euroblocks
